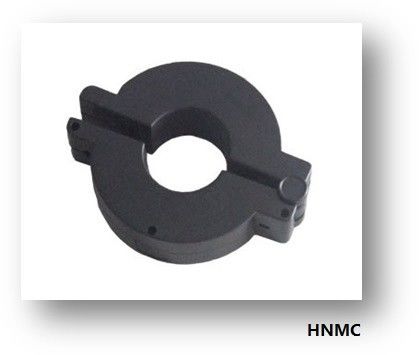

Light Weight Split Core Hall Effect Current Sensor 25mm

Light Weight Split Core Hall Effect Current Sensor 25mm
Light Weight Split Core Hall Effect Current Sensor 25mm

Large Image :  Light Weight Split Core Hall Effect Current Sensor 25mm

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: KH25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton package
Delivery Time: weeks
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 2000pcs per month
Detailed Product Description
Standard Input Current: 20-300A Frequency: 50-400Hz
Standard Accuracy: 0.5, 0.2 Load Capacity: ≤4Ω
Installation: Suspension Output: Lead Output
High Light:

50Hz Split Core Hall Effect Current Sensor

,

25mm Split Core Hall Effect Current Sensor

,

20A flex core current transformer

Split Core Current Transformer KH25



Application



1. Power Systems

2. A place with tight space

3. Where can't be cut off



Product functions and features

split iron core design, Low core loss and high accuracy, no need to re-insert the bus bar, easy to install and disassemble. nice appearance. Good product consistency and good linearity at low current



Selling point

1. Split core design, low core loss and high accuracy;

2. No need to disconnect the bus bar, easy installation, does not affect the normal electricity consumption of customers;

3. Beautiful appearance, small size, light weight;

4. Buckle opening and closing Structure, easy to open and close.



The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.

These CTs can be mounted without removing existing cables for easier installation.



APPLICATIONS



Characteristic : apply to test on line below 300A

Clamp diameter: Φ25mm

Size: 57mm×76mm×20mm

Load capacity:≤4Ω

installation:suspension

Output :lead output



Parameter list:

Primary Current Secondary current class
20A 10mA 0.2,0.5
30A 30mA 0.2,0.5
30A 15mA 0.2,0.5
30A 10mA 0.2,0.5
40A 40mA 0.2,0.5
40A 20mA 0.2,0.5
50A 50mA 0.2,0.5
50A 25mA 0.2,0.5
60A 30mA 0.2,0.5
60A 20mA 0.2,0.5
80A 40mA 0.2,0.5
100A 50mA 0.2,0.5
100A 40mA 0.2,0.5
300A 150mA 0.2,0.5

Light Weight Split Core Hall Effect Current Sensor 25mm 0

Outdoor Split-core Current Transformer Application

- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring

Outdoor Split-core Current Transformer Features

- Outdoor rating IP68
- UV stabilized thermoplastic.
- compliant to IEC61869-2
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety
