Product Details:
Payment & Shipping Terms:
|
| Standard Input Current: | 20-300A | Frequency: | 50-400Hz |
|---|---|---|---|
| Standard Accuracy: | 0.5,0.2 | Load Capacity: | ≤4Ω |
| Installation: | Suspension | Output: | Lead Output |
| High Light: | 4ohm Split Core Current Sensor,300A Split Core Current Sensor,25mm split type current transformer |
||

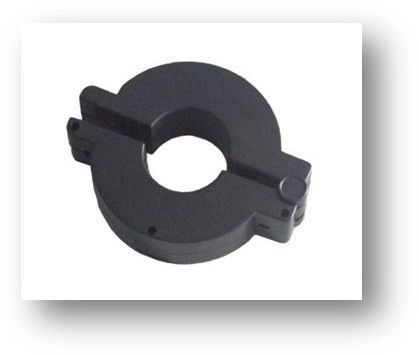

Split Core Current Transformer KH25
The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
These CTs can be mounted without removing existing cables for easier installation.
APPLICATIONS
● Energy and sub-metering products
● Electrical load monitoring
● Network equipment
● Instruments and sensors
● Control systems
● Go GREEN initiatives
Characteristic:apply to test on line below 300A
Clamp diameter:Φ25mm
Size :57mm×76mm×20mm
Load capacity:≤4Ω
installation:suspension
Output :lead output
Parameter list:
| Primary Current | Secondary current | class |
| 20A | 10mA | 0.2,0.5 |
| 30A | 30mA | 0.2,0.5 |
| 30A | 15mA | 0.2,0.5 |
| 30A | 10mA | 0.2,0.5 |
| 40A | 40mA | 0.2,0.5 |
| 40A | 20mA | 0.2,0.5 |
| 50A | 50mA | 0.2,0.5 |
| 50A | 25mA | 0.2,0.5 |
| 60A | 30mA | 0.2,0.5 |
| 60A | 20mA | 0.2,0.5 |
| 80A | 40mA | 0.2,0.5 |
| 100A | 50mA | 0.2,0.5 |
| 100A | 40mA | 0.2,0.5 |
| 300A | 150mA | 0.2,0.5 |
Outdoor Split-core Current Transformer Application
- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring
Outdoor Split-core Current Transformer Features
- Outdoor rating IP68
- UV stabilized thermoplastic.
- compliant to IEC61869-2
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety
