80mm Split Core Type Current Transformer , 400Hz Split Core Current Transducer

Name: 80mm Split Core Type Current Transformer , 400Hz Split Core Current Transducer
Brand: HNMC
SKU: KH80
Rating: 4.8 (191 reviews)

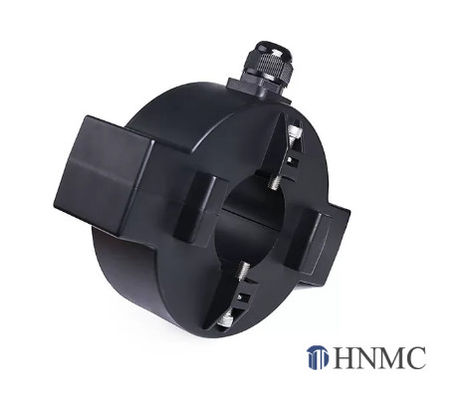

Large Image : 80mm Split Core Type Current Transformer , 400Hz Split Core Current Transducer

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	KH80

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	weeks
Payment Terms:	Western Union, MoneyGram, L/C, T/T
Supply Ability:	2000pcs per month

Contact Now

Detailed Product Description

Standard Input Current:	50-1000A	Frequency:	50-400Hz
Standard Accuracy:	0.5,0.2	Output:	Lead Output
Jaw:	80mm	Color:	Black Or White
Highlight:	80mm Split Core Type Current Transformer , Black Split Core Type Current Transformer , 400Hz Split Core Current Transducer

AC Split Core Current Transformer KH80

Technical Parameters

Load capacity	<=4ohm (mA output); <=1VA (1A output); <=5VA (5A output, 600-1000A); <=2.5VA (5A output, <=500A)
Diameter	80mm
Dimension	19313828mm

Weatherproof Outdoor Split-core Current Transformer IP68 0.5 or 0.2 Class Power Distribution line monitoring

outdoor split-core current transformer, provide either 1A or 5A output and are designed to monitor outdoor

conductors in distribution lines. The product design for these outdoor current transformers is such that they

can convert an AC input current of up to 2000A amperes into an output of 5A or 1A depending on customer

requirements. adopt permalloy sophisticated core corrosion proof design for outdoor use. Our outdoor split

core CTs are IP68 protection rated and strong UV resistance.

Outdoor Split-core Current Transformer Application

- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring

Outdoor Split-core Current Transformer Features

- Outdoor rating IP68
- UV stabilized thermoplastic.
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety

Primary current	Secondary current	class
50A	50mA	0.2, 0.5
100A	100mA	0.2, 0.5
200A	200mA	0.2, 0.5
300A	300mA	0.2, 0.5
400A	400mA	0.2, 0.5
500A	500mA	0.2, 0.5
50A	25mA	0.2, 0.5
400A～1000A	5A	0.5
600A～1000A	5A	0.5

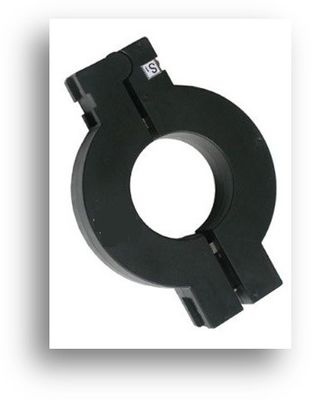

80mm Split Core Type Current Transformer , 400Hz Split Core Current Transducer 0
