Product Details:
Payment & Shipping Terms:
|
| Standard Input Current: | 500-2000A | Frequency: | 50-400Hz |
|---|---|---|---|
| Accuracy Class: | 0.5 (1A Or 5A Output), 0.2 (mA Output) | Load Capacity: | ≤5VA (secondary 5A); ≤1VA (secondary 1A) |
| Jaw Size: | 80mm×30mm | Color: | Black Or White |
| Highlight: | 0.2 Outdoor Split Core Current Transformer,IP68 Outdoor Split Core Current Transformer,2000A split core ct |
||

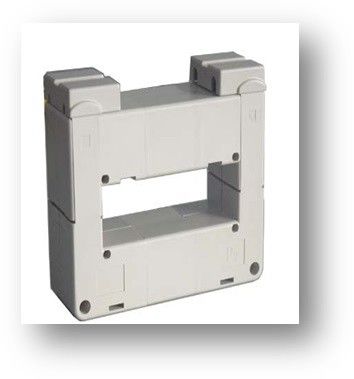

Split Core Current Transformer SKH80
General description
Weatherproof Outdoor Split-core Current Transformer IP68 online monitoring
| Characteristic | Apply to copper row teset on line |
| Current range | 600-2000A |
| Jaw size | 80mm×30mm |
| External size | 126mm×110mm×49mm |
| Load capacity max | 1VA (secondary 1A ), 5VA(Secondary 5A) |
| Installation | Bracket |
| Output | terminal output |
Features
Outdoor Split-core Current Transformer Application
- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring
Outdoor Split-core Current Transformer Features
- Outdoor rating IP68
- UV stabilized thermoplastic
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety
| Technical parameters | |
|---|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
| Accuracy Class | 0.5 (1A or 5A output), 0.2 (mA output) |
| Range of primary rated current | 600-2000A |
| Rated frequency | 50/60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 150%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Safety Factor Rating | (FS) <10 |
| Output signal | 1A, 5A (mA output, mV output, 1V or 5V, customized) |
| Cable length | 2.5m, 5m, 10m(customized) |
| Flame retardant ABS plastic shell inside, jaw waterproof apron. | |
