16mm Split Core Current Transformer , Online Monitoring 100A Split Core CT

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

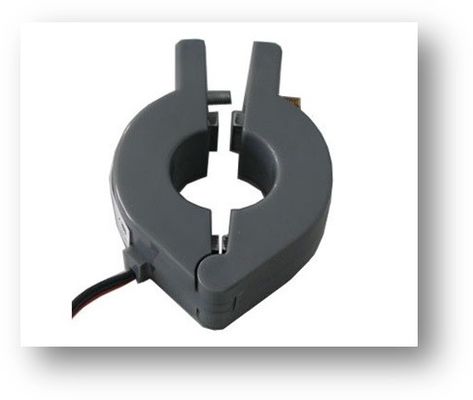

16mm Split Core Current Transformer , Online Monitoring 100A Split Core CT

16mm Split Core Current Transformer , Online Monitoring 100A Split Core CT
16mm Split Core Current Transformer , Online Monitoring 100A Split Core CT

Large Image :  16mm Split Core Current Transformer , Online Monitoring 100A Split Core CT

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: KH16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 1 weeks
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 2000pcs per month
Detailed Product Description
Standard Input Current: 20-100A Frequency: 50-400Hz
Standard Accuracy: 0.5,0.2 Load Capacity: ≤4Ω
Installation: Suspension Output: Lead Output
High Light:

16mm Split Core Current Transformer

,

0.2 Split Core Current Transformer

,

Online Monitoring 100A Split Core CT

AC Split Core Current Transformer KH16



The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.

These CTs can be mounted without removing existing cables for easier installation.



APPLICATIONS

● Energy and sub-metering products

● Electrical load monitoring

● Network equipment

● Instruments and sensors

● Control systems

● Go GREEN initiatives

Characteristic :apply to test on line below 100A

Clamp diameter:Φ16mm

Size :38mm×55mm×18mm

Load capacity :≤4Ω

installation:suspension

Output :lead output

Parameter list:





Primary current Secondary current class
20A 20mA 0.2, 0.5,1.0
20A 10mA 0.2, 0.5,1.0
30A 30mA 0.2, 0.5,1.0
30A 15mA 0.2, 0.5,1.0
30A 10mA 0.2, 0.5,1.0
40A 40mA 0.2, 0.5,1.0
40A 20mA 0.2, 0.5,1.0
50A 50mA 0.2, 0.5,1.0
50A 25mA 0.2, 0.5,1.0
60A 30mA 0.2, 0.5,1.0
60A 20mA 0.2, 0.5,1.0
80A 40mA 0.2, 0.5,1.0
100A 50mA 0.2, 0.5,1.0



After sales service

  • Our sales and technical team can guarantee a fast and highly efficient after sales service for our products sold.
  • Once problem happens in clients, firstly we will consider online support of our clients to solve it quickly; secondly we will consider to provide spare parts for client to replace after fixing reason.



We will provide best service to support your marketing field.
