150mm 5000A Split Core Current Transformer With Permalloy Core

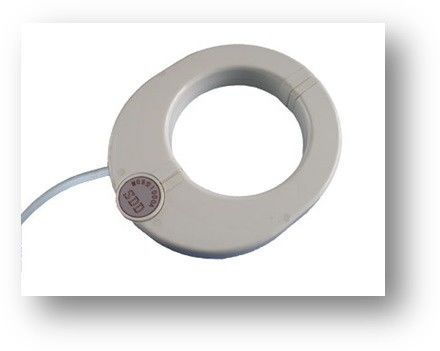

Large Image : 150mm 5000A Split Core Current Transformer With Permalloy Core

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	KH150

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden package
Delivery Time:	1 weeks
Payment Terms:	Western Union, MoneyGram, L/C, T/T

Contact Now

Detailed Product Description

Standard Input Current:	1000-5000A	Frequency:	50-400Hz
Standard Accuracy:	0.5 (1A Or 5A Output), 0.2 (mA Output)	Load Capacity:	1VA(1Aoutput),5VA(5A Output), 4Ω (mA Output)
Installation:	Suspension	Output:	Lead Output
Jaw:	150mm	Color:	Black Or White
Highlight:	150mm Split Core Current Transformer , 5000A Split Core Current Transformer , white split type ct

Split Core Current Transformer KH150

Weatherproof Outdoor Split-core Current Transformer IP68 0.5 class

Characteristic	apply to test on line below 5000A
Clamp diameter	Φ150mm
Accuracy class	0.5 (1A or 5A output), 0.2 (mA output)
Size	230mm×269mm×44mm
Load capacity maximum	1VA(1Aoutput),5VA(5A output), 4Ω (mA output)
Installation	Suspension
Output	Lead output

Outdoor Split-core Current Transformer Application

- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring

Outdoor Split-core Current Transformer Features

- Outdoor rating IP68
- UV stabilized thermoplastic.
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety

Primary current	Secondary current	class
1000A-3000A	5A	0.5
1000A-5000A	1A	0.5

Working conditions
Operating temperature	-35°C to +65°C, not exceeding +40°C
Storage temperature	-40°C to +70°C
Ingress Protection	IP68
Environment	outdoors or indoors
The Height of above sea level	0- 3000m
Conditions	No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

150mm 5000A Split Core Current Transformer With Permalloy Core 0
