Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers

Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers
Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers

Large Image :  Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MH-RC03Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 10-25 days
Supply Ability: 500pcs per month
Detailed Product Description
Coil Type: Rogowski Flexible Accuracy Class: 1.0
Output: Max 1V Harmonic Test: Up To 51 Times
High Light:

Integrator AC Current Clamp Probe

,

10Hz AC Current Clamp Probe

,

1.0 Rogowski Coil Flexible Current Transformers

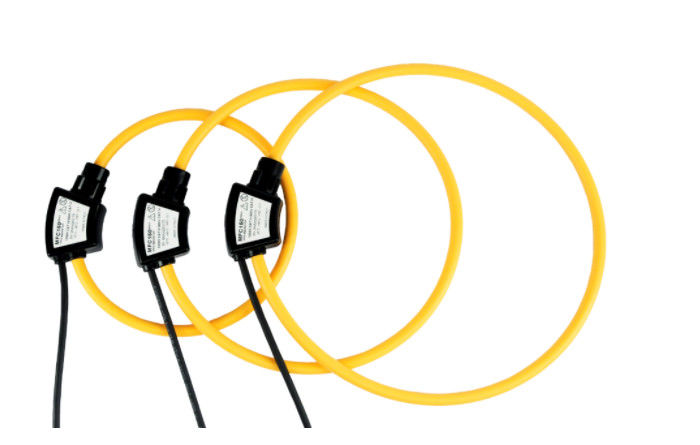

Rogowski Flexible Coil AC Currrent Probe MH-RC03 series



1. The coil output gives a low voltage signal, therefore there is no danger from open-circuited secondary.

This makes Rogowski transducers extremely suitable for temporary measurements, for example in combination with portable analysers.

2. Unlike traditional current transformer with magnetic core, the Rogowski coil is a non-intrusive transducer. Since it has no hard core,

it draws no power from the main circuit carrying the current to be measured.

3. The absence of magnetic core grants a wide frequency response.



1. Three phases with three ranges by switch

2. Rogowski coil with integrator

3. Current range can be customized

4. Accuracy: +/-1%

5. Harmonic measurement up to 51 times



SPECIFICATION



Phases/Ranges Three Phases and Three Ranges
Measuring ranges 100/500/2500A, 30/300/3000A,or 60/600/6000A (or customized)
Output sensitivity max 1V or 1A AC (or customized)
Accuracy

±1% of reading ± 0.1A (100/500A, 30/300A or 60/600A ranges)

±1% of reading ±1A (2500A, 3000A or 6000A range)

Minimum load 100kΩ for specified accuracy
Frequency range 10Hz to 10 KHz (-1 dB)
Phase (45-65Hz) <±1°
Harmonic measure up to 51 times
Phase (45-2500Hz) conform to IEC60044-8:2002 standard
Temperature coefficient ±0.1℃
Power supply 120-270V AC 100-300V DC





Probe

Probe lengths 610mm

Probe diameter 12mm

Probe output cable: 2m probe to integrator

(Exact details can be customized)

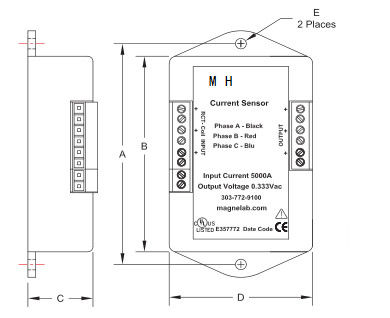

Integrator

Dimensions:132*86*46(L*W*D)mm

Output connection: 0.5m coax cable terminated with 3 safety male BNC

Interface: The aviation plug

(Input with three aviation plugs, output with one aviation plug and power supply with

one)

Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers 0

General Characteristics

Operating temp. -20°C - +65°C

Storage temp. -40°C - +75°C
