| JAW: | 20MM | Size: | 48mm×186mm×27mm |
|---|---|---|---|
| Installation Method: | Clamp Type | Characteristic: | Apply To Test On Line Below 200A |
| Highlight: | 200mA Clip On Current Transformers,200mA CE Clip On Current Transformers,0.2m clamp transformer |
||

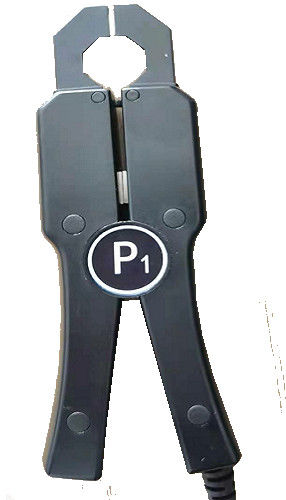

JawΦ20mm AC Current Probe clamp transformer MODEL Q20A
200A Best Universal AC Current Clip On Probe Manufacturer Class 0.2
The Q20A AC Current Clip On Probe is designed based on safety and performance standards, and carry the CE mark. Q20A measures current from 200A, and measures current 200mA on secondary. The round jaws permit multiple conductor positioning for industry and electrical indirect contracting.
Features
1. Measurement range of 1mA to 200A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output (2.5m)
Parameter
| Electrical parameters | |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 200A AC |
| Secondary current | 0 - 200mA AC (customized) |
| Max. Cont. Input current | 240A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 200mA AC at nominal input current |
| Output signal (AC voltage) | From 0 to 200mV AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 48 x 186 x 27 |
| Weight (g) | 300 |
| Holding wire diameter (mm) | φ20 |
| Max. jaw opening (mm) | 20 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
