| Size: | 229mm×364mm×44mm | Installation Method: | Clamp Type |
|---|---|---|---|
| Characteristic: | Apply To Test On Line Below 3000A | Ratio: | (customized) |
| Accuracy Class: | 0.2%, 0.5%, 1% | Primary Current: | 0 - 3000A AC |
| High Light: | 150mm AC Current Clamp Probe,Q150 AC Current Clamp Probe,4ohm Clip On Type Current Transformer |
||
AC Current Probe in Digital Energy Meters Accuracy Class 0.5
Introduction

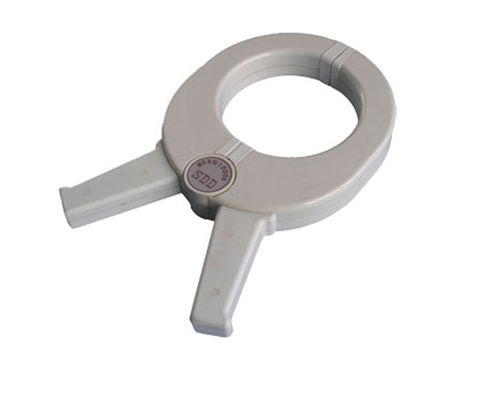

The model Q150 current clamp on measuring instrument can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
Applications
Parameter
| Electrical parameters | |
| Ratio | (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 3000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 3600A |
| Over voltage category | CAT III 600 V |
| Output signal (AC current) | 500mA,1A,5A AC at nominal input current |
| Electrical parameters - continued | |
| Output signal (AC voltage) | 333mV,500mV,1V,5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 229mm×364mm×44mm |
| Weight (g) | 1200 |
| Holding wire diameter (mm) | φ150 |
| Max. jaw opening (mm) | 50 |
| Jaw color | White |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
