| JAW: | 8MM | Size: | 45mm×158mm×25mm |
|---|---|---|---|
| Installation Method: | Clamp Type | Characteristic: | Apply To Test On Line Below 5A 10A |
| High Light: | Q8A-2 AC Current Clamp Probe,Q8A-2 5A AC Current Clamp Probe,2.5mA Q8A-2 Clamp On Current Transformer |
||

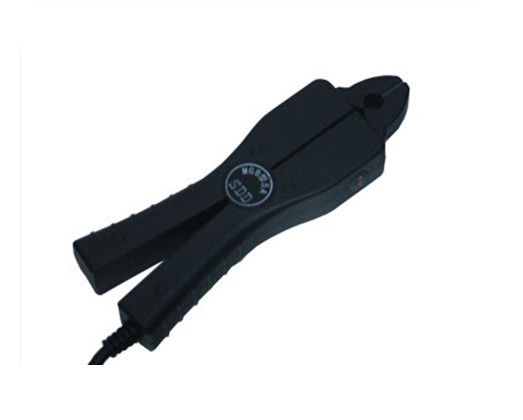

JawΦ8mm AC Current Probe clamp transformer MODEL Q8A-2
| Primary current | Secondary current | class |
| 5A | 2mA | 0.1 |
| 5A | 2.5mA | 0.1 |
| 5A | 5mA | 0.1 |
| 5A | 10mA | 0.1 |
| 10A | 2.5mA | 0.1 |
| 10A | 4mA | 0.1 |
| 10A | 5mA | 0.1 |
| 10A | 10mA | 0.1 |
Technical service
Much experienced technical team will provide strong technical support for your market development. We can provide support on customization, maintenance, device design, construction scheme, design optimization, and product development.
Quality control
We have professional quality control team. Our quality control covers materials, production procedure, finished product inspection, final inspection before loading, inspection report.
※Can be customized according to user needs
