Test Function: | Polarization Index, Dielectric Absorption Ratio.... | Current Output: | Large Output, Short Circuit >=5mA |
---|---|---|---|
Measure Range: | 0.1M-400GΩ | Power Supply: | Battery |
High Light: | 400G ohms Insulation Resistance Test Set,400G 5mA Insulation Resistance Test Set,400G Battery Insulation Resistance Tester |

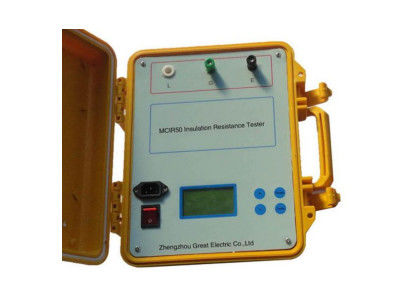

Insulation Resistance Tester MCIR50
Features
1) Adopt 32 digit micro-controller, and English operating interface.
2) Automatic calculation of polarization index and dielectric absorption ratio, then automatically
save the test datum.
3) Large current output , short circuit current >=5mA
4) Strong Anti-interference, can operate at worksite like super-high voltage sub-station
5) Automatically discharge after testing and real-time monitoring discharge
6) One-time charging can get continuous use for 6-12 hours
Technical Index
Accuracy | ±(10%+5 digits) |
Measure range | 0.1M~400GΩ |
Set range of the testing voltage | 0.5Kv, 1KV, 2.5KV, 5KV,10KV |
Short circuit current | ≥5mA |
Testing time | 1min~10min (depends on the testing way ) |
Charging power supply | 180~270VAC, 50Hz/60Hz±1% |
Operating temperature | -10~40℃, relative humidity 20~80% |
