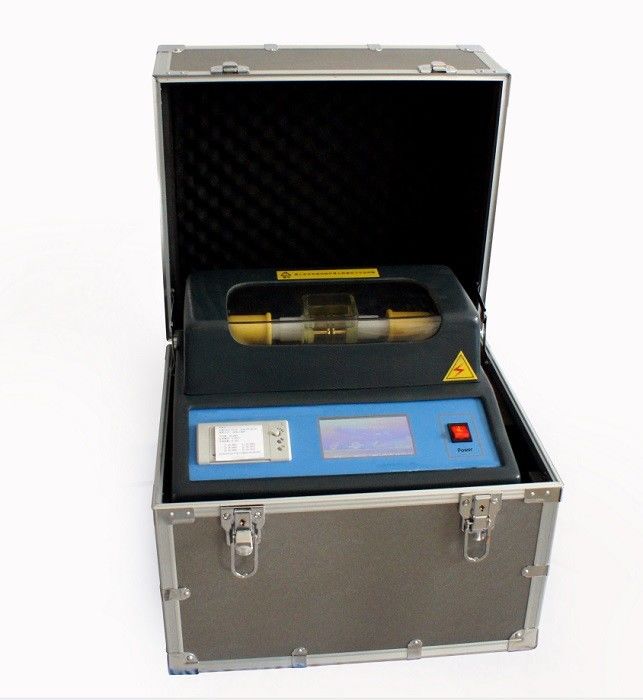

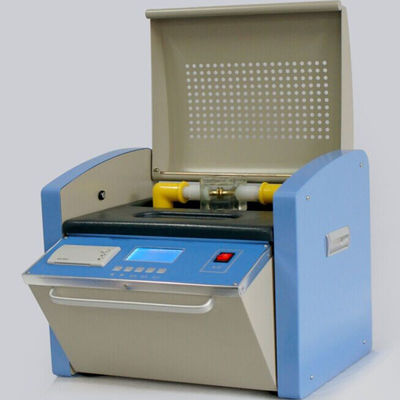

100KV Transformer Oil Dielectric Strength Tester LCD Screen

100KV Transformer Oil Dielectric Strength Tester LCD Screen
100KV Transformer Oil Dielectric Strength Tester LCD Screen 100KV Transformer Oil Dielectric Strength Tester LCD Screen

Large Image :  100KV Transformer Oil Dielectric Strength Tester LCD Screen

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCOT80
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Composite Board package
Delivery Time: 20-25 days
Payment Terms: T/T
Supply Ability: 30 sets per month
Detailed Product Description
Output Voltage: 80 Or 100KV Max Accuracy: 3%
Distortion: <3% Display: LCD
Highlight:

100KV Transformer Oil Dielectric Strength Tester

,

3% Transformer Oil Dielectric Strength Tester

,

LCD insulation resistance test meter

Insulation Oil Dielectric Strength Test Kit MCOT80



Features

  • With microprocessor, automatically fulfill the test for oil circulation with a range of 0~80KV
  • Large screen LCD display
  • Automatically complete withstand-voltage test of oil after simple setting
  • Can save breakdown voltage value (1 to 6 times) and recurrent times
  • With in-built thermal printer, which can print each breakdown and average voltage value
  • Can save 100 pcs test results
  • Can display current ambient temperature and humidity
  • Adopt a single-chip microcomputer to boost the voltage at an even speed.
  • Equipped with over-voltage, over-current and limit protections to ensure the safety of operators
  • With the function of displaying the measured temperature and system clock.
  • Communicate with computer with a standard RS232 interface

Applications
Testing of insulating liquids in transformers, bushings, switchgear, capacitors and hydraulics

Major Technical Index

Item Index
Output voltage 0~80KV (100kv optional)
Voltage distortion rate <3%
Voltage rising speed: 0.5~5KV/S (adjustable)
Standing time: 15min (adjustable)
Boosting interval 5 min (adjustable)
Boosting frequency :1~6 time(s) (optional)
Booster capacity: 1.5KVA
Measuring accuracy: ±3%
Supply voltage AC240V±10% 50Hz±1Hz
Power consumption: 200W
Oil volume 400 ml
Applicable temperature 0℃~45℃
Applicable humidity <75%RH
Measuring accuracy: ±3%
Overall dimension 465×385×425mm



After sales service

  • Our sales and technical team can guarantee a fast and highly efficient after sales service for our products sold.
  • Once problem happens in clients, firstly we will consider online support of our clients to solve it quickly; secondly we will consider to provide spare parts for client to replace after fixing reason.



We will provide best service to support your marketing field.
