HV Tan Delta Tester MCHTD 010

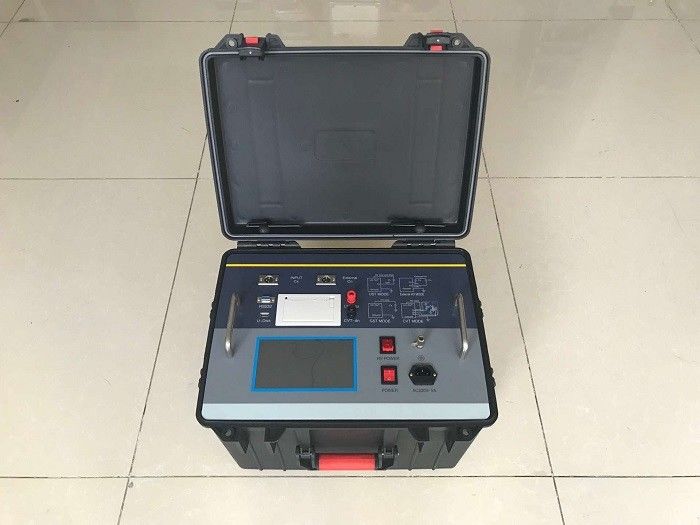

Insulation Dielectric Tester 10KV AC Touch screen Oil Dielectric Loss Test Set
Main Feature
1. The instrument uses Fourier transform digital filtering technology to measure capacitance,
dielectric loss and other parameters.
2. The instrument adopts frequency conversion technology to eliminate 50Hz power frequency interference
in the field. Even in the environment of strong electromagnetic interference, reliable data can be measured.
3. It is easy to operate with full touch LCD.
4. Storage data: It is equipped with a calendar chip and a large-capacity memory,
5. Scientific and advanced data management:
Technical Index
Item | Technical Index | |
Accuracy |
Cx: ±(Rd×1%+1pF) tgδ: ±(Rd×1%+0.00040) |
|
Anti-interference index | Variable frequency anti-interference,reach above accuracy under the condition of 200% | |
capacitance range | Internal applied HV |
3pF~60000pF/10kV 60pF~1μF/0.5kV
|
External applied HV | 3pF~1.5μF/10kV 60pF~30μF/0.5kV | |
Tgδ range | No limit,resolution 0.001,Capacitance,inductance,resistance automatically recognize | |
current range | 10μA~5A | |
Internal applied HV |
voltage setting range:0.5~10kV max.output current:200mA |
|
buck-boost voltage mode | voltage to free set E.g: 5123V | |
Test frequency |
40-70Hz Single Frequency Random Settings.E.g48.7Hz. 50±0.1Hz to 50±10HzAutomatic Double Frequency Converter Arbitrary Setting. 60±0.1Hz to 60±10HzAutomatic Double Frequency Converter Arbitrary Setting |
|
External applied HV |
Max.test current at UST 5A,frequency 40-70Hz Max.test current at GST:10kV/5A,frequency40-70Hz |
|
CVT Low Voltage Output by Self-Excitation Method |
Output voltage3~50V, Output current 3~30A |
|
Test time | about 40s,no consider of test mode | |
Power supply | 180V~270VAC,50Hz±1% | |
PC port |
standard RS232 port U-disk socket (automatic U-disk storage data) |
|
Printer: | Miniature Thermal Printer | |
Ambient temperature | -10℃~50℃ | |
Relative humidity: | <90% | |
Dimension | 430×330×350mm | |
Weight | 28kgs |
6. The instrument is easy to operate and the measurement process is controlled by microprocessor.
7. Integrated model, with standard capacitor and high voltage power supply, is convenient for field test and
reduces field wiring.
8. The instrument has high accuracy and can meet the requirements of oil dielectric loss measurement.
9. It has the function of low voltage shielding of reverse wiring.
10. Be able to do AC withstand voltage test. It is convenient for PT and CT to do AC voltage withstanding
test twice and 400V low voltage system to do voltage withstanding test.
11. It can identify the frequency of external high-voltage power supply from 40Hz to 70Hz,
12. It has the function of CVT test and can realize the self-excitation test of CVT.
13. When testing CVT, not only the capacitance and dielectric loss values of C1 and C2 can be automatically
tested, but also the total capacitance and dielectric loss values of CVT equipment can be tested.
14. With a thermal printer, to facilitate users to produce test reports, with U disk output.
15. With computer interface. A computer can control 32 instruments,
16. Grounding protection function.
17.Electric shock protection function.
