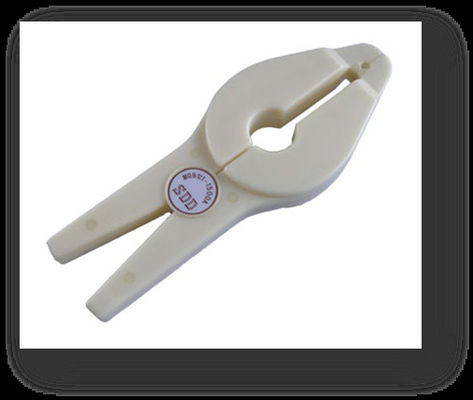

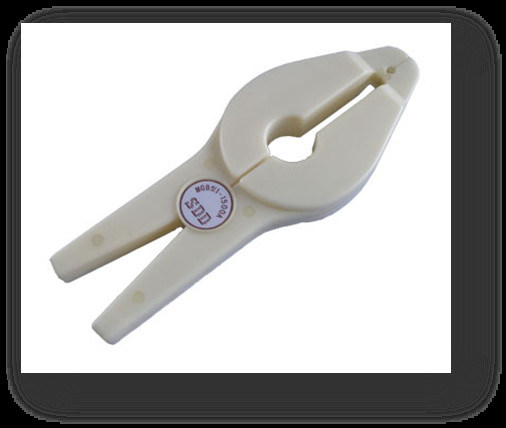

JawΦ8mm AC Current Probe clamp transformer MODEL Q8-35

​JawΦ8mm AC Current Probe clamp transformer MODEL Q835

Features

Measurement range of 1mA to 120A AC

Improved ergonomic design and easy operation

High content nickel metal core

Low phase shift for power measurement

Small, compact size

Jaw opening accommodates conductors up to 13mm diameter

Designed for DMMs, loggers, recorders and oscilloscopes

40Hz to 10kHz response

1mA/A AC output signals

Designed to EN 61010, 600V CAT III safety standard

UL, CE mark

• Characteristic Unique double jaws design, so that a variety of functions As a whole, the product can be used to achieve 5A, 500A, 1000A cable and copper bar measurement,Thus, the cost of complete test equipment can be reduced
• size:110mm×295mm×35mm
• Load capacity:MA output≤4Ω,1A output 0.1Ω,

• 5Aoutput 2.5va

• Installation method:clamp type
• Output :down-lead output
• parameter:

※Can be customized according to user needs
