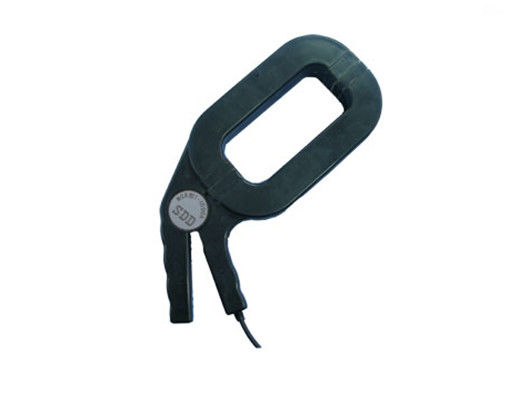

3000A Class 0.5 AC Current Clamp Probe 2.5m Lead output

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

3000A Class 0.5 AC Current Clamp Probe 2.5m Lead output

3000A Class 0.5 AC Current Clamp Probe 2.5m Lead output
3000A Class 0.5 AC Current Clamp Probe 2.5m Lead output

Large Image :  3000A Class 0.5 AC Current Clamp Probe 2.5m Lead output

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: Q125A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden package
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Size: 116mm×290mm×36mm Installation Method: Clamp Type
Characteristic: Apply To Test On Line Below 3000A Accuracy Class: 0.2%, 0.5%, 1%
Primary Current: 0 - 3000A AC JAW: 120mm*50mm
High Light:

3000A AC Current Clamp Probe

,

0.5% AC Current Clamp Probe

,

2.5m clamp ct transformer

AC Current Probe in Digital Energy Meters Accuracy Class 0.5



Introduction

The model Q125A current clamp on measuring instrument can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.



Applications

As clip-on transformer iron core must make it free open jewels, and technology development difficulty is very high, we further technology development for many years, has formed the one whole set of unique manufacturing process, thus the level of accuracy, reliability, product specifications and so on coverage in the domestic and international leading level, better meet the needs of the masses of users.







Parameter



Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.2%, 0.5%, 1%
Primary current 0 - 3000A AC
Secondary current 0 - 5A AC (customized)
Max. Cont. Input current 3600A
Over voltage category CAT III 600 V
Output signal (AC current) 500mA,1A,5A AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage) 333mV,500mV,1V,5V AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm) 116 x 290 x 36
Weight (g) 1200
Holding wire diameter (mm) φ120 x 50
Max. jaw opening (mm) 50
Jaw color White
Material PC+ABS+Polycarbonate, UL94 V0



Primary current Secondary current Class %
180A~1000A 30mA 0.5
1000A~2000A 250mA 0.1,0.2,0.5
1000A~3000A 500mA 0.1,0.2,0.5
300A~1000A 1A 0.2,0.5
1000A~3000A 1A 0.1,0.2,0.5
300A~1000A 5A 0.5
1000A~3000A 5A 0.2,0.5

3000A Class 0.5 AC Current Clamp Probe 2.5m Lead output 0
