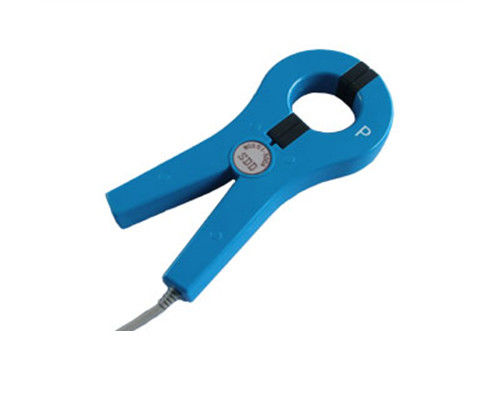

JawΦ50mm AC Current Probe clamp transformer MODEL Q50A
Custom AC Permalloy Current Probe 1000A / 5A for Ethernet Power Meter
The Q50A is a 1000 Amp current probes which can measure 0-1000A cable while measuring without power off.
Permalloy current probe Q50A features a 2 in. (50 mm) jaw size and high linearity. Product comes with a year warranty.
Color has blue and grey as options.
Applications
Electric energy meter calibrator (on site)
Double clamp type ground resistance tester
Double clamp type phase volt-ampere meter
Digital multi-meter
Multi-function energy meter
Power quality analyzer
Matched instruments
Calibration instrument on site
Features
Suitable for 1000A cable online measurement.Holding wire diameter: φ50mm
Dimension: 101mm×219mm×26mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameter
Primary current | Secondary current | Class % |
10A | 2.5mA | 0.1,0.2,0.5 |
10A | 5mA | 0.1,0.2,0.5 |
20A | 5mA | 0.1,0.2,0.5 |
100A | 20mA | 0.1,0.2,0.5 |
100A | 40mA | 0.1,0.2,0.5 |
100A | 50mA | 0.1,0.2,0.5 |
100A | 100mA | 0.1,0.2,0.5 |
200A | 80mA | 0.1,0.2,0.5 |
200A | 100mA | 0.1,0.2,0.5 |
200A | 200mA | 0.1,0.2,0.5 |
300A | 120mA | 0.1,0.2,0.5 |
300A | 150mA | 0.1,0.2,0.5 |
300A | 200mA | 0.1,0.2,0.5 |
300A | 300mA | 0.1,0.2,0.5 |
500A | 100mA | 0.1,0.2,0.5 |
500A | 200mA | 0.1,0.2,0.5 |
500A | 250mA | 0.1,0.2,0.5 |
500A | 500mA | 0.1,0.2,0.5 |
600A | 120mA | 0.1,0.2,0.5 |
600A | 200mA | 0.1,0.2,0.5 |
600A | 300mA | 0.1,0.2,0.5 |
600A | 400mA | 0.1,0.2,0.5 |
600A | 500mA | 0.1,0.2,0.5 |
600A | 600mA | 0.1,0.2,0.5 |
Primary current | Secondary current | Class % |
700A | 200mA | 0.1,0.2,0.5 |
700A | 350mA | 0.1,0.2,0.5 |
700A | 700mA | 0.1,0.2,0.5 |
700A | 700mA | 0.1,0.2,0.5 |
800A | 160mA | 0.1,0.2,0.5 |
800A | 200mA | 0.1,0.2,0.5 |
800A | 250mA | 0.1,0.2,0.5 |
800A | 320mA | 0.1,0.2,0.5 |
800A | 400mA | 0.1,0.2,0.5 |
800A | 500mA | 0.1,0.2,0.5 |
800A | 800mA | 0.1,0.2,0.5 |
500A~800A | 1A | 0.2,0.5 |
600A~800A | 1A | 0.1,0.2,0.5 |
200A | 5A | 1.0 |
300A~500A | 5A | 0.5 |
500A~800A | 5A | 0.2,0.5 |
Ground resistance tester | Special instrument | 0.1,0.5 |
Electrical parameters | |
Ratio | 1000: 1 or 2000:1 (customized) |
Accuracy class | 0.1%, 0.2%, 0.5% |
Primary current | 0 - 1000A AC |
Secondary current | 0 - 5A AC (customized) |
Max. Cont. Input current | 1200A |
Over voltage category | CAT III 600V |
Output signal | 500mA,1A,5A AC at nominal input current |
Frequency range | 40Hz-2000Hz |
Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
Temperature range | -20°C to +55°C |
Output | 2.5 meter cable with D01 connector |
Max. voltage not insulated conductors | 600 V |
Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
Installation | Clamp type |
Output mode | Lead output (2.5m) |
Mechanical parameters | |
Dimensions (L x W x H) (mm) | 102.9 x 219.6 x 28 |
Weight (g) | 550 |
Holding wire diameter (mm) | φ50 |
Max. jaw opening (mm) | 50 |
Jaw color | Blue |
Material | PC+ABS+Polycarbonate, UL94 V0 |
