| JAW: | 20MM | Size: | 56mm×168mm×27mm |
|---|---|---|---|
| Installation Method: | Clamp Type | Characteristic: | Apply To Test On Line Below 200A |
| High Light: | 0.8m AC Current Clamp Probe,0.8m Q20B AC Current Clamp Probe,200A 0.8m Clip On Current Transformer |
||

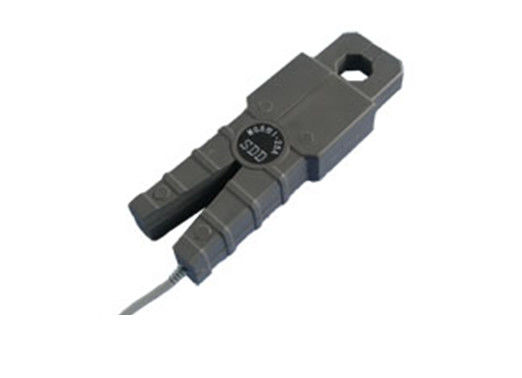

JawΦ20mm AC Current Probe clamp transformer MODEL Q20B
200A Best Universal AC Current Clip On Probe Manufacturer Class 0.2
The Q20A AC Current Clip On Probe is designed based on safety and performance standards, and carry the CE mark. Q20A measures current from 200A, and measures current 200mA on secondary. The round jaws permit multiple conductor positioning for industry and electrical indirect contracting.
Features
1. Measurement range of 1mA to 200A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Parameter
| Primary current | Secondary current | Turn compensation | Class % |
| 5A | 2.5mA | none | 0.2 |
| 20A(40)A | 2.5mA | none | 0.1,0.2,0.5 |
| 20A | 5mA | none | 0.1,0.2,0.5 |
| 20A | 10mA | none | 0.1,0.2,0.5 |
| 30A | 25mA | none | 0.1,0.2,0.5 |
| 100A | 20mA | none | 0.1,0.2,0.5 |
| 100A | 20mA | 200 truns | 0.2 |
| 100A | 25mA | none | 0.1,0.2,0.5 |
| 100A | 40mA | none | 0.1,0.2,0.5 |
| 100A | 40mA | 400 truns | 0.2 |
| 100A | 50mA | none | 0.1,0.2,0.5 |
| 100A | 50mA | 200 truns | 0.2 |
| 100A | 100mA | none | 0.2 |
| 100A | 100mA | 200truns | 0.2 |
| 120A | 200mA | none | 0.5 |
| 150A | 50mA | none | 0.1,0.2,0.5 |
| 150A | 100mA | none | 0.1,0.2,0.5 |
| 150A | 150mA | none | 0.1,0.2,0.5 |
| 200A | 100mA | none | 0.1,0.2,0.5 |
| 200A | 80mA | none | 0.1,0.2,0.5 |
| 200A | 50mA | none | 0.1,0.2,0.5 |
| 200A | 200mA | none | 0.1,0.2,0.5 |
