Product Details:
Payment & Shipping Terms:
|
JAW: | 8MM | Size: | 42mm×139mm×20mm |
---|---|---|---|
Installation Method: | Clamp Type | Characteristic: | Apply To Test On Line Below 5A 10A |
High Light: | Q8 Clamp On Current Transformers,Q8 1000A Clamp On Current Transformers,0.5% Q8 ac dc current probe |

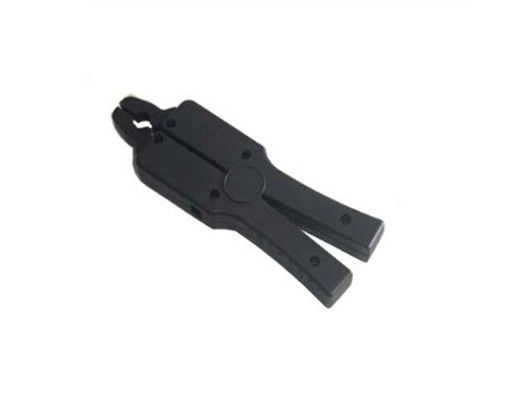

JawΦ8mm AC Current Probe clamp transformer MODEL Q8
Theory
In electrical and electronic engineering, a current probe is an electrical device with jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it, or to disconnect it for insertion through the probe. Current probes are typically used to read the magnitude of alternating current (AC) and, with additional instrumentation, the phase and waveform can also be measured. Some clamps meters can measure currents of 1000 A and more.
Primary current | Secondary current | Class % |
5A | 2mA | 0.5 |
5A | 2.5mA | 0.5 |
5A | 5mA | 0.5 |
10A | 4mA | 0.5 |
10A | 5mA | 0.5 |
10A | 10mA | 0.5 |
Our advantage service
Technical support
※Can be customized according to user needs
