Q8 AC Current Clamp Probe , 0.2% Current Probe For Multimeter

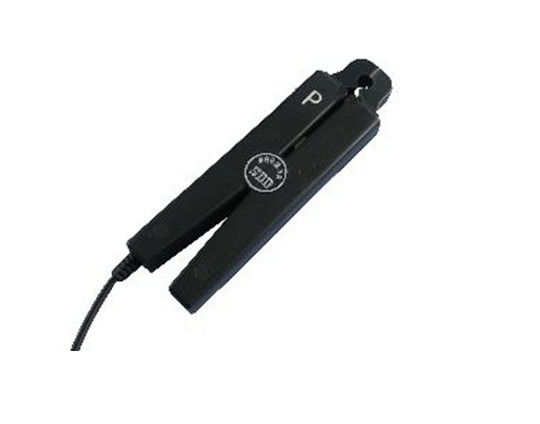

Large Image : Q8 AC Current Clamp Probe , 0.2% Current Probe For Multimeter

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	Q8B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden package
Delivery Time:	4-8weeks
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

JAW:	8MM	Size:	44mm×159mm×23mm
Installation Method:	Clamp Type	Characteristic:	Apply To Test On Line Below 5A 10A
Load Capacity:	≤4Ω	Accuracy Class:	0.1%,0.2%
Highlight:	Q8 AC Current Clamp Probe , Q8 4ohm AC Current Clamp Probe , Q8 0.2% Current Probe For Multimeter

JawΦ8mm AC Current Probe clamp transformer MODEL Q8B

Characteristic: apply to test on line below 5A 10A
Jaw:Φ8mm
Size :44mm×159mm×23mm
Load capacity:≤4Ω
Installation method:clamp type
Output :down-lead output
parameter:

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%
Primary current	0 - 30A AC
Secondary current	0 - 10mA AC (customized)
Max. Cont. Input current	12 A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 10mA AC at nominal input current
Output signal (AC voltage)	From 0 to 100mV AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	42.6x122.5x23
Weight (g)	250
Holding wire diameter (mm)	φ8
Max. jaw opening (mm)	8
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0

Primary current	Secondary current	Turn compensation	Class %
5A	2mA	none	0.2,0.5
5A	2mA	200	0.2
5A	2.5mA	none	0.2,0.5
5A	2.5mA	200 turns	0.2
5A	5mA	none	0.2,0.5
5A	5mA	200 turns	0.2
5A	5mA	400 turns	0.2
5A	10mA	none	0.2,0.5,1.0
6A	5mA	400 turns	0.2
10A	4mA	none	0.2,0.5,1.0
10A	5mA	none	0.2,0.5,1.0
20A	5mA	none	0.2
20A	10mA	none	0.2,0.5,1.0
30A	2.5V	none	0.5
