| JAW: | 8MM | Size: | 45mm×158mm×25mm |
|---|---|---|---|
| Installation Method: | Clamp Type | Characteristic: | Apply To Test On Line Below 5A 10A |
| High Light: | Q8A-2 Current Clamp Probe For Multimeter,Q8A-2 8mm Current Clamp Probe For Multimeter,5A Q8A-2 clamp on current transformer |
||

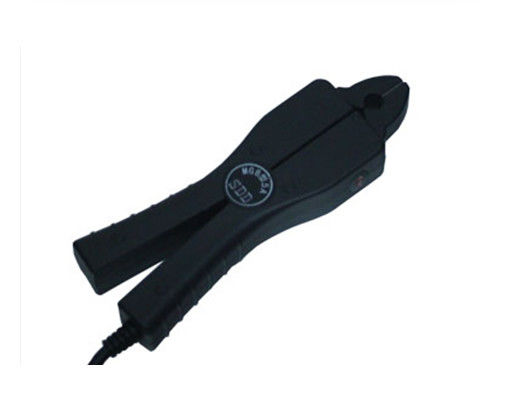

JawΦ8mm AC Current Probe clamp transformer MODEL Q8A-2
10A High Sensitivity 0.1% Permalloy Core CT AC Current Probe
The model Q8A-2 permalloy core current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.
Probes work with testing devices are ideal for measuring currents with high accuracy making them indispensable tools for evaluating current consumption and control current. In recent years,
customers are seeking current probes with high sensitivity to increase the accuracy of design and
verification. The products included in this range can be used to measure current levels from a few mA to
up to several thousand amperes.
| Primary current | Secondary current | Class |
| 5A | 2mA | 0.1 |
| 5A | 2.5mA | 0.1 |
| 5A | 5mA | 0.1 |
| 5A | 10mA | 0.1 |
| 10A | 2.5mA | 0.1 |
| 10A | 4mA | 0.1 |
| 10A | 5mA | 0.1 |
| 10A | 10mA | 0.1 |
After sales service
We will provide best service to support your marketing field.
※Can be customized according to user needs
