| JAW: | 8MM | Size: | 45mm×158mm×25mm |
|---|---|---|---|
| Installation Method: | Clamp Type | Characteristic: | Apply To Test On Line Below 5A 10A |
| Accuracy Class: | 0.2/0.1 | Output: | Down-lead Output |
| High Light: | Q8A-1 AC Current Clamp Probe,8mm AC Current Clamp Probe,Q8A-1 8mm 0.2 Clip On Current Transformer |
||

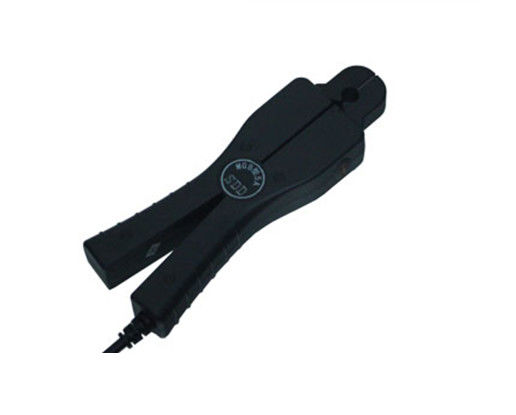

JawΦ8mm AC Current Probe clamp transformer MODEL Q8A-1
Applications
Power quality measuring
Measuring around cable bundles
Power load monitoring
Waveform analysis
Energy meter calibrator
Measuring in breaker panels
HVAC
Residential and commercial sites
Data logging/recording
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1% |
| Primary current | 0 - 10A AC |
| Secondary current | 0 - 10mA AC (customized) |
| Max. Cont. Input current | 12 A |
| Load capacity | ≤4Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 10mA AC at nominal input current |
| Output signal (AC voltage) | From 0 to 100mV AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 42.6x122.5x23 |
| Weight (g) | 250 |
| Holding wire diameter (mm) | φ8 |
| Max. jaw opening (mm) | 8 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
| Primary current | Secondary current | Class |
| 5A | 2mA | 0.1 |
| 5A | 2.5mA | 0.1 |
| 5A | 5mA | 0.1 |
| 5A | 10mA | 0.1 |
| 10A | 2.5mA | 0.1 |
| 10A | 4mA | 0.1 |
| 10A | 5mA | 0.1 |
| 10A | 10mA | 0.1 |
※Can be customized according to user needs
