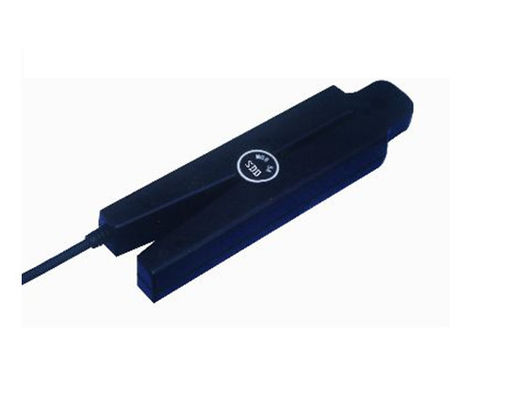

4Ohm Clip On Type Current Transformer Down Lead Output

​JawΦ8mm AC Current Probe clamp transformer MODEL Q8A

As clip-on transformer iron core must make it free open jewels, and technology development difficulty is very high, we further technology development for many years, has formed the one whole set of unique manufacturing process, thus the level of accuracy, reliability, product specifications and so on coverage in the domestic and international leading level, better meet the needs of the masses of users.

• Characteristic :apply to test on line below 5A 10A
• Jaw::Φ8mm
• Size:44mm×165.5mm×26.5mm
• Load capacity:≤4Ω
• Installation method: clamp type
• Output :down-lead output
• parameter:

• Primary current	Secondary current	Turn compensation	Class %
  5A	2mA	none	0.1
  5A	2mA	200 turns	0.1
  5A	2mA	250 turns	0.1
  5A	2.5mA	none	0.1
  5A	5mA	none	0.1
  5A	5mA	200turns	0.1
  5A	5mA	200turns+500turns	0.1
  5A	5mA	1000turns	0.1
  5A	5mA	1500turns	0.2
  5A	10mA	none	0.1
  10A	2.5mA	none	0.1
  10A	3.125mA	none	0.1
  10A	4mA	none	0.1
  10A	5mA	none	0.1
  10A	10mA	none	0.1

  After sales service

• Our sales and technical team can guarantee a fast and highly efficient after sales service for our products sold.
• Once problem happens in clients, firstly we will consider online support of our clients to solve it quickly; secondly we will consider to provide spare parts for client to replace after fixing reason.

•

  We will provide best service to support your marketing field.

• ※Can be customized according to user needs
