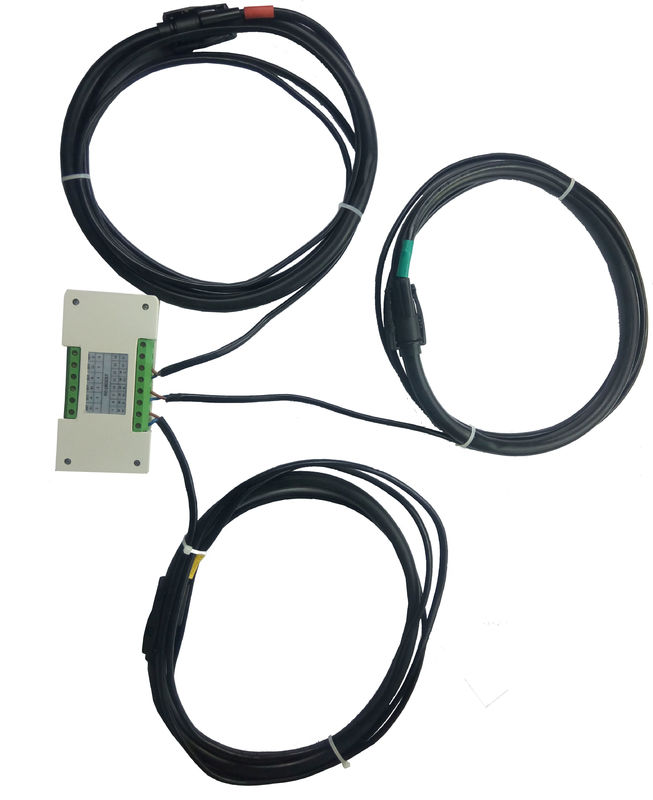

6000A Class 1.0 Flexible Rogowski Coil Online Monitoring

MH-RC01 Series Flexible Rogowski Coil AC Current Probe (Sensor)

SPECIFICATIONS

Rogowski Coil (Flexible)

Phase/Range: Three Phases, 0-300% variable of rated input current

Rated Input Range: 250 Amp to 5,000 Amp (or customized) available

Output: 0.333 V at rated current (up to 5 V available)

Accuracy: ±1%

Phase accuracy (45-65HZ): < 0.5 degrees

Phase accuracy (45-2500HZ): conform to IEC60044-8:2002 standard

Harmonic measure can be up to 51 times

Integrator

Power supply: 9-36 VDC or AC 110-240V (or customized)

Output cable to integrator: 2m

Probe

Length/diameter: 610mm/12mm (or customized)

Part Number and Rating

Connection

Terminal 1 OUT+ of phase A

Terminal 2 OUT- of phase A

Terminal 3 OUT+ of phase B

Terminal 4 OUT- of phase B

Terminal 5 OUT+ of phase C

Terminal 6 OUT- of phase C

Terminal 7 IN+ of phase A

(Connect the brown wire of the probe with the yellow marking and labeled phase A )

Terminal 8 IN- of phase A

(Connect the blue wire and shielding layer of the probe with the yellow marking

and labeled phase A )

Terminal 9 IN+ of phase B

(connect the brown wire of the probe with the green marking and labeled phase B )

Terminal 10 IN- of phase B

(connect the blue wire and shielding layer of the probe with the green marking and

Labeled phase B )

Terminal 11 IN+ of phase C

(connect the brown wire of the probe with the red marking and labeled phase C )

Terminal 12 IN- of phase C

(connect the blue wire and shielding layer of the probe with the red marking

and labeled phase C)

Terminal 13 power + (9-36V DC)

Terminal 14 power - (0V DC)
