380V Energy Meter Calibration , 0.05 Class Harmonic Test Equipment

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

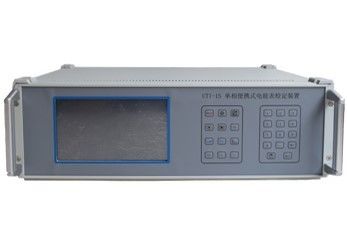

380V Energy Meter Calibration , 0.05 Class Harmonic Test Equipment

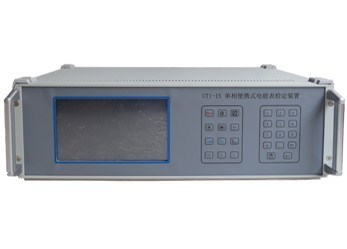

380V Energy Meter Calibration , 0.05 Class Harmonic Test Equipment
380V Energy Meter Calibration , 0.05 Class Harmonic Test Equipment

Large Image :  380V Energy Meter Calibration , 0.05 Class Harmonic Test Equipment

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: UTI-1S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets Per Month
Detailed Product Description
Accuracy Class: 0.05, 0.02 Test Function: Error, Start, Creep, Dial..etc
Amplifier Type: Linear Operation Type: PC Software, Touch Screen
Voltage Range: Up To 380V Current Range: 1mA-120A
Harmonic: 2-51 Times Test Meter Type: Various Single Phase Meter
Highlight:

380V Energy Meter Calibration

,

0.001HZ Energy Meter Calibration

,

0.05 Class Harmonic Test Equipment



Portable Single Phase Meter Test Equipment UTI-1S



1. In-built Standard Reference Meter (SRM): accuracy class 0.05 or 0.02 (optional)

2. Error test, start test, creep test, dial test..etc

3. Measurement of volts, current, p.f., power, frequency, phase angle, harmonic..Etc.

4. Linear amplifier

5. Can be independent set & output of each phase voltage & current

6. Can set phase angle independently

7. Meter Rack: three positions are optional

8. Automatic control by PC software

9. Manual control by touch screen/keypad

10. Different test points selection

11. Display vector diagram and waveform



Technical Index

Accuracy class 0.05 or 0.02 (optional)
Measure range
Voltage 30-300V (P-N) (480V optional)
Current 1mA-120A
Frequency 45-70HZ, resolution 0.001HZ
Phase angle 0-359.99°, resolution 0.001°, error 0.03°
Voltage source
Range 30-375V (P-N)/51V-650V(P-P), resolution: 6 digits valid value
Output Accuracy 0.05%
Output power 50VA/phase
Output stability 0.02%/3mins
Output distortion <0.5%
Load regulation (0-100% load) 0.02%
Current source
Range 1mA-120A, resolution: 6 digits valid value
Output Accuracy 0.05%
Output power 100VA/phase
Output stability 0.02%/3mins
Output distortion <0.5%
Load regulation (0-100% load) 0.02%
Other parameters
Supply Voltage AC 88-284V, 50/60HZ
Dimension (approx) 510*600*170mm (main unit)





Features



1) With in-built standard meter class 0.05 and with impulse outputs.

2) 7”LCD display, touch screen

3) Can test various of single phase electromechanical /electronic energy meter

4) Can test and display voltage, current, phase, error, active energy, reactive energy, apparent energy,

    power, phase angle, power factor, frequency and etc

5) With enough protection, like short-circuit voltage, current open-circuit protection,

    overload protection, over-voltage protection

6) 2-51 times harmonics test, adjustable harmonic amplitude (≤40%)

7) Can save test data 500pcs up

8) With two impulse inputs, can get connect with external reference when need, work together

      with error processing system of unit and then comparing error, through connecting one power meter

9) With one option for choice between internal reference meter mode or external reference meter mode.

10) Have configuration where you can set the pulse value like pulse/wh or wh/pulse or pulse/kwh or kwh/pulse
