0.02 Class Portable Energy Meter Test System MCST01D

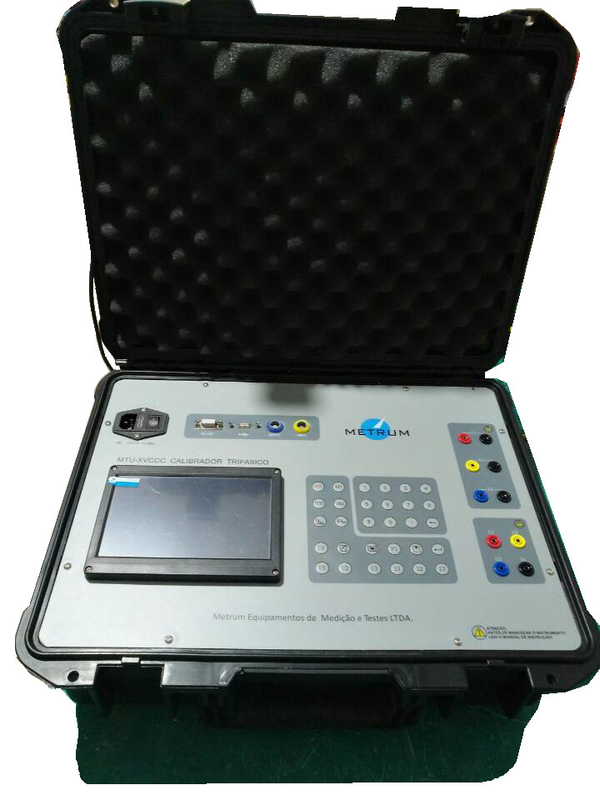

Portable Three Phase Meter Test Equipment MCST01D


Features

• With in-built standard meter class 0.02 and with impulse outputs.
• 7”LCD display
• Can test various of single phase and three phase electromechanical /electronic energy meter
• Can test and display voltage, current, phase, error, active energy, reactive energy, apparent energy, power, phase angle, power factor, frequency and etc
• With in-built error calculator to calculate error of meter under test
• With enough protection, like short-circuit voltage, current open-circuit protection, overload protection, over-voltage protection
• 2-31 times harmonics test, adjustable harmonic amplitude (≤40%)
• Dial test/Start test/Creep test
• RS232 communication port with PC
• Can save test data 500pcs up
• With two impulse inputs, can get connect with external reference when need, work together with internal error processing system of the unit and then comparing error, through also connecting one power meter
• With one option for choice between internal reference meter mode or external reference meter mode.
• Have configuration where you can set the pulse value like pulse/wh or wh/pulse or pulse/kwh or kwh/pulse

Technical Index

Accuracy class: 0.02

Voltage range: 30-300V (P-N) (480 optional)

Current range: 1mA-60A

Supply Voltage: AC 88-284V, 50/60HZ,

Input Power Consumption: 450W

Ambient Temperature: -10℃-45℃

Influence of auxiliary Voltage: ≤0.005% at 10% Variation

Dimension (approx): 510*600*170mm (main unit)

Material of Enclosure: High strength polypropylene composite resin

Frequency Range & Resolution: 45-69HZ, 0.001HZ

Phase Angle Range & Resolution: 0-359.99°, 0.001°

Phase angle Error: 0.03°

Communication Interface: RS232

Voltage Source

Voltage Range: 30-300V (P-N)/51V-520V(P-P);

0-125% continuously adjustable, maximum voltage can be up to 375V (P-N)/650V(P-P)

Resolution: 0.001 - 0.0001V

Output Accuracy: 0.05%

Output capacity: 50VA/phase

Distortion Factor: ≤0.5%

Output Stability: 0.02%/3min

Load Regulation (0-100% load): 0.02%

Current Source

Current range: 1mA –100A, 120% adjustable, maximum up to 120A

Resolution: 0.0001 - 0.00001A

Output Accuracy: 0.05%

Output capacity: 100VA/Phase

Distortion Factor: ≤0.5%

Output Stability: 0.02% / 3min

Load Regulation (0-100% load): 0.02%

Generation Of Harmonics

Fundamental Frequency Range: 45-69HZ

Harmonics test: 2-31times

Phase shift (basic Waveform/Harmonic): 0-360°

Configuration & Accessories List
