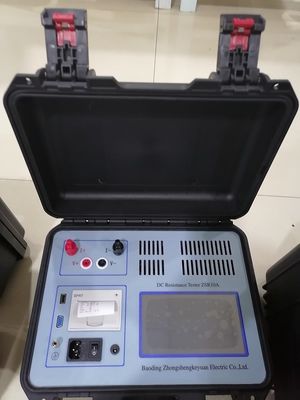

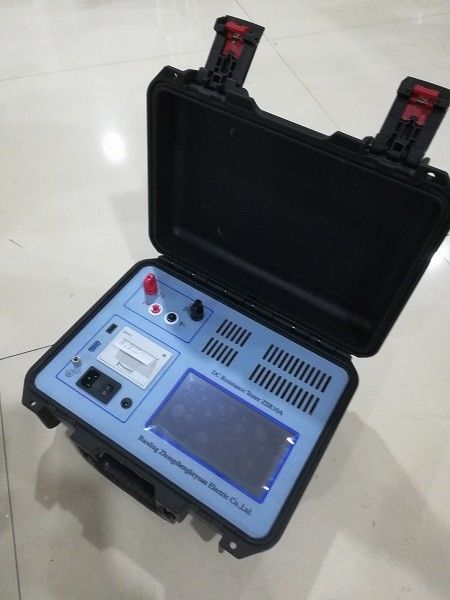

Touch Screen Transformer Resistance Tester , RS232 Winding Resistance Test Set

Transformer Test Equipment 100KΩ Touch screen LCD DC Resistance Tester

Main features

1. Be operate by Android mobile phone or tablet

2. Maximum output voltage of instrument -24V,  convenient to select a larger test

     current when the resistance value is high, so as to improve the test speed

3. Use new power supply technology, with many current ranges and wide measuring range.

    Automatically select the current according to the load. Suitable for DC resistance measurement

    of small and medium-sized transformers and voltage transformers.

4. With many protection functions, such as back EMF impact, wire breaking and power-off during the test,

    overheat of power supply and so on.

5. With function of any temperature conversion of copper and aluminum materials, touch to input any

    winding temperature and conversion temperature.

6. Intelligent power management technology, the instrument works in the minimum power state,

    effective energy saving, reduce heating.

7. Seven inch high brightness touch color LCD, clear display under strong light, full touch screen operation,

    free switching between Chinese and English.

8. With own calendar clock and power-off storage, which can store 1000 groups of test

    data and can be consulted at any time.

9. With Blueteeth communication, RS232 communication and USB interface for computer

     communication and USB data storage.

10. Test results can be printed.

Technical Index
