10A Transformer Test Equipment , Portable Transformer DC Resistance Tester

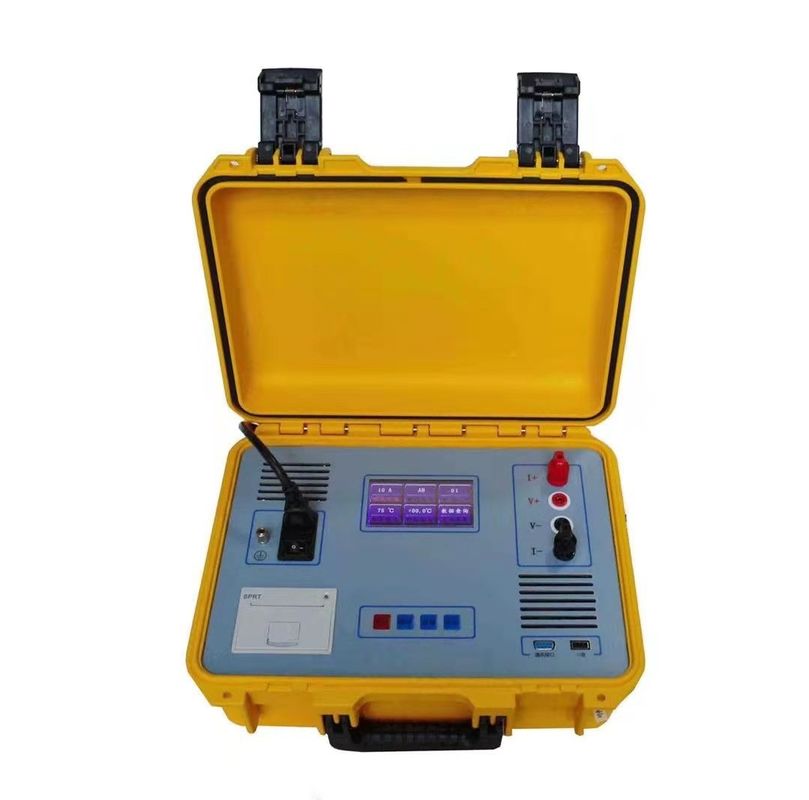

Portable Transformer DC Resistance Tester ZSR10B

Main Features

1. This product is suitable for 10kV and 35kV distribution transformer, transformer, motor, generator and
    other inductive load test, as well as wire, relay, switch contact, etc.
2. It has the function of temperature conversion, which can be converted to the resistance value under
    different temperatures according to customer requirements, so as to facilitate data comparison.
3. It can store 1000 groups of test data and real-time test time.
4. With micro printer, it can print test data in real time.
5. With discharge sound alarm, power overheating, voltage reverse connection and other protection functions.
6. 480x272 lattice 65K true color LCD, high brightness, clear display under strong light.
7. The on load switch can be switched directly in the measurement state, and the instrument can refresh
    the data automatically without reset operation.
8. It is equipped with RS232 interface and U disk interface, which is convenient for communication and data storage.
9. It has 6 current gears and automatic current gears, which can be automatically selected according to the load.
10. Injection molding case, waterproof, dustproof, shock absorption, etc.
11. Large capacity lithium battery (16.8v/7800mah) is optional.

Technical Index



Our advantage service

• We have our own development team, which can ensure a constant technology innovation for marketing.
• Customization is the characteristic of our supplies, and we can make suitable solution and provide valuable products to our clients according to client requirement.
• We will put 100% efforts even if it is 1% customization requirement.


Technical support

• Most our products are following international standard and follow some popular technology.
• We have special technicians to provide consulting service and for every project, we offers most suitable and economic solution.
• In solution design stage, we fully consider its easy-to-maintenance for client.
