0.001% Transformer Tester Meter , 50ohm Fra Frequency Response Analyzer

Name: 0.001% Transformer Tester Meter , 50ohm Fra Frequency Response Analyzer
Brand: HNMC
SKU: SFRA20
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (190 reviews)

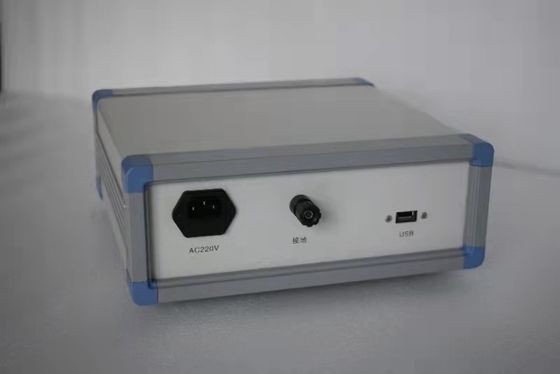

Large Image : 0.001% Transformer Tester Meter , 50ohm Fra Frequency Response Analyzer

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	SFRA20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	Carton package
Delivery Time:	20-25 Days
Payment Terms:	L/C, T/T
Supply Ability:	200 Pcs per month

Contact Now

Detailed Product Description

Test Speed:	1 Min Or 2 Min	Output Impedance:	50Ω
Frequency Scan Range:	10HZ-20MHZ	Frequency Accuracy:	0.001%
Model:	SPRA20	Output Voltage:	Vpp-25V
High Light:	0.001% Transformer Tester Meter , 25V Transformer Tester Meter , 50ohm FRA Frequency Response Analyzer

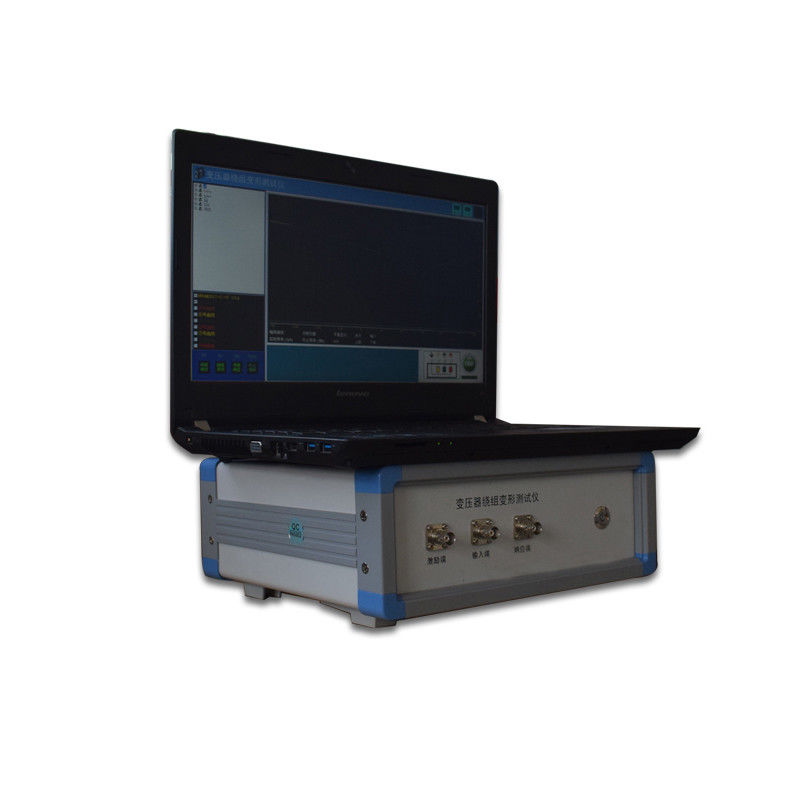

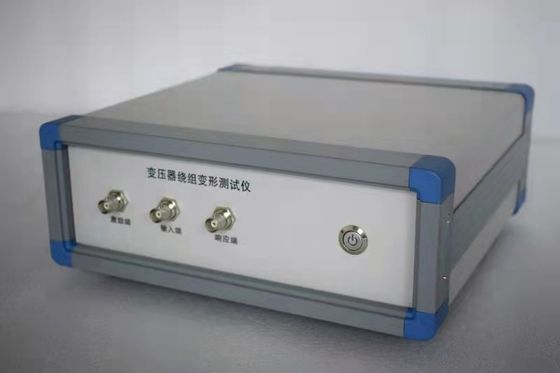

Portable Transformer Sweep Frequency Response Analyzer SFRA20

Main Features

1. Characteristics of transformer windings are measured with frequency sweep method. Deformations of

windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting

amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure

or disintegration.

2. Quick measuring, measuring of a single winding is within 2 minutes.

3. High frequency accuracy, higher than 0.001%.

4. Digital frequency synthesis, with higher frequency stability.

5. 5000V voltage isolation fully protects safety of the testing computer.

6. Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose

winding deformations to provide the reference diagnosis conclusion.

7. Analysis software has powerful functions and software and hardware indicators .

8. Software management is humanized with high degree of intelligence. You only need to click a key to

complete all measurements after setting of parameters.

9. The software interface is concise and vivid, with clear menus of analysis, save, report export, print, etc.

Technical Index

Item	Technical Index
Measuring speed:	1 min- 2 min for single-phase winding
Output voltage:	Vpp-25V, adjusting automatically in test
Output impedance:	50Ω
Input impedance	1MΩ (the response channel is built with 50Ω matching resistance)
Frequency scan scope	10Hz-20MHz
Frequency accuracy:	0.001%
Frequency scan manner:	linear or logarithmic, frequency sacn interval and number of sweep points are freely settable
Curve display	amplitude-frequency curve (phase-frequency curve, optional)
Width of measuring dynamic range	-120dB~20dB
Supply voltage:	AC100-240V 50/60Hz (use DC12V Adapater recommend)
Dimension	238mm184mm40mm
Net weight:	2.45Kg
