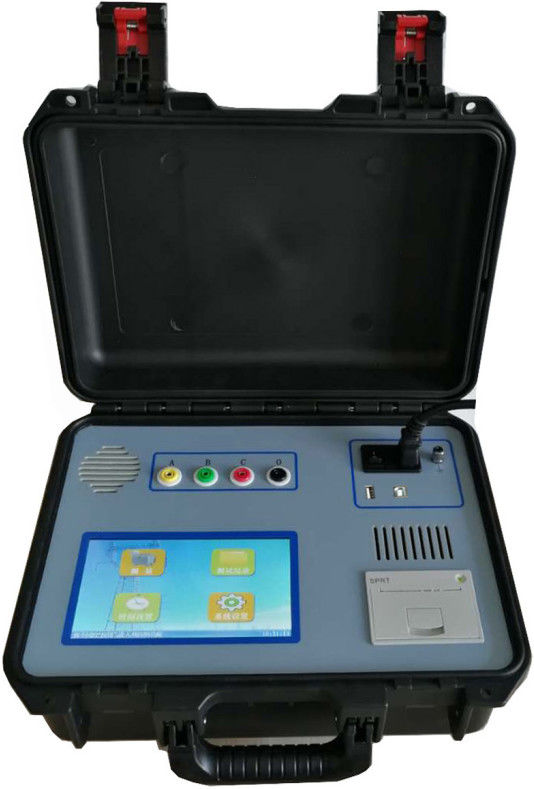

Circuit Breaker Characteristic Tester ZSKG-II
Performance
1.1. time
The machine can measure the inherent opening and closing time of 12 way metal fracture, the same phase and the same period time. It can measure the short time and no current time of closing opening, opening closing and opening closing opening process, the closing bounce time, and the pre switching time of closing resistance for some models.
1.2. speed and stroke
This machine can record and measure the closing bounce time, bounce times, bounce process and bounce waveform of each fracture.
1.3. speed and stroke
The machine can record and calculate the rigid opening and closing speed, maximum speed, average speed, total stroke, opening distance, overtravel, rebound amplitude and time stroke characteristic curve.
1.4. current and voltage
This machine can record the opening / closing current value and current waveform of the opening / closing coil. It can provide dc5 ~ 270V / 10A (20a) digital adjustable circuit breaker action power supply. It can automatically complete the low voltage action test of the circuit breaker and measure the action voltage value of the circuit breaker.
1.5. closing resistance
Some models of this machine can measure 6-way closing resistance values and their pre switching time at the same time.
Technical parameters
2.1. use environment
| Item | Specification |
| Input power | 220 V ± 10%, 50 Hz ± 10% |
| Atmospheric pressure | 86 ～ 106kpa |
| Temperature | - 10 ～ 40 ℃ |
| Humidity | ≤ 80% RH |
2.2. safety performance
| Item | Specification |
| Insulation resistance | > 2m Ω |
| Dielectric strength |
the power supply can withstand voltage of 1.5kV for one minute. No flashover |
2.3. basic parameters
2.3.1. time
When the range is 250-4000ms, the resolution is 0.1ms and the error is 0.1ms ± 1 word. When the measuring range is 10000-20000ms, the resolution is 1ms and the error is 1ms ± 1 word.
| Item | Specification | |
| When the range is 250-4000ms | resolution | 0.1ms |
| error | 0.1ms ± 1 word | |
| When the measuring range is 10000-20000ms | resolution | 1ms |
| the error | 1ms ± 1 word | |
2.3.2. speed
| Item | Specification |
| measurement range | 20.00 M / s |
| resolution | 0.001 M / s |
| error | ± 0.01 M / s ± 1 word |
2.3.3. current
| Item | Specification |
| measurement range | 20a |
| resolution | 0.01A |
| error | 1% ± 0.1A |
2.3.4. closing resistance
| Item | Specification |
| range | 50 ~ 2000 Ω |
| precision | 0.5% RDG ± 1 Ω |
| range | 2000 ~ 7000 Ω |
| precision | 1% RDG ± 1Ω |
| resolution | 1 Ω |
2.3.5. output power supply
| Item | Specification |
| output power supply | DC 5 ~ 270V digital adjustable 20A (instantaneous operation) |
2.3.6. stroke
| Switch type | Range (mm) | Resolution (mm) | Error |
| Vacuum circuit breaker | 50 |
0.1 |
1% ± 1 word |
| SF6 circuit breaker | 300 | ||
| Low oil circuit breaker | 1000 |
