Detailed Product Description
Model: MCCB001A Air Pressure: 86~106kpa
Insulation Resistance: >2MΩ Range: 25000.0ms
High Light:

10A Power Test Equipment

,

106kpa Power Test Equipment

,

Anti Jamming Circuit Breaker Analyzer


Circuit Breaker Analyzer MCCB001A

Performance Characteristics

1. Performance

   a. Time: 12 inherent in the fracture points, closing time, with the same period, and white the same period.
   b. Reclosing: each fracture together - sub, sub - together, sub - Hopewell - sub-process time: one point,
       a time is the time of the two-in-gold   short time, current time value.
   c. Speed: just now, just closing speed, maximum speed, time - stroke characteristic curve.
   d. Stroke: total trip, open distance, over-travel, the overshoot travel, rebound amplitude.
   e. Current: points, closing coil points, closing the current value, the current waveform diagram.
   f. Operating Voltage: DC30 ~ 250V/20A digital machine adjustable breaker operation power supply,
      to automatically complete low voltage operation test of the breaker, measuring the value of the operating
      voltage of the circuit breaker.

2. Characteristics

   a.  All models suitable for domestic and foreign production of SF6 switchgear, GIS combination of electrical,
       vacuum switch, oil switch mechanical properties test
   b. Super anti-jamming capability, 500KV substation the bypass bus charged case can easily test to
       accurately measure.
   c. Universal speed sensor, straight line linear sensor, rotary sensor, extremely easy to install and simple.
   d. Switching operation once obtained the switch mechanical properties testing of all data and the
       corresponding waveform Spectrum.
   e. The host field test data, the machine can be stored in the real-time clock, easy to the archive save
       the test date, time.
   f. Host big screen, wide temperature, direct perspective, backlight LCD Chinese display all data and maps,
      LCD contrast electronic adjustment, power and memory.
   g. Chinese menu operation, easy to use. Instrument built-in printer, fast print all data and maps at any time.
   h. The instrument with data analysis and management software, PC online operation, test results can be
       output to the various types of dot matrix, laser or ink-jet printer to printtest report, field trials computerized.

Technical Parameters

1.1. Using Environments

Item Specification
Input Power 220V±10% 50Hz±10%
Air Pressure 86~106kpa
Temperature -10~40℃
Humidity ≦80%RH


1.2. Safety Performance

Item Specification
Insulation Resistance >2MΩ
Dielectric Strength

1.5KV power supply chassis work frequency withstand voltage 1 minute, no flashover and arcing.



1.3. Basic Parameter
a. Time:

Item Specification
Range 25000.0ms
Resolution 0.01ms
Word error

① 250ms 0.1ms ± 1
② 2500ms 0.1% ± 1 word
③ 25000ms 0.1% ± 1 word



b. Speed

Item Specification
Span 20.00m / s
Resolution 0.01m / s
Word Error ① 0-2m / s within ± 0.1m / s ± 1 word
② 100ms or ± 0.2m / s ± 1 word



C. Tips

  span resolution error
Vacuum breaker 50.0mm 0.1mm 1%±1 word
SF6 circuit breaker 300.0mm 1mm
Less oil circuit breakers 600.0mm


d. Current: 10.00A resolution range 0.01A
e. Output power: DC30 ~ 250V digital adjustable / 10A
(instantaneous work)
f. Dimensions: 360mm (L) × 280mm (W) × 300mm (H)
g. Weight: 9kg

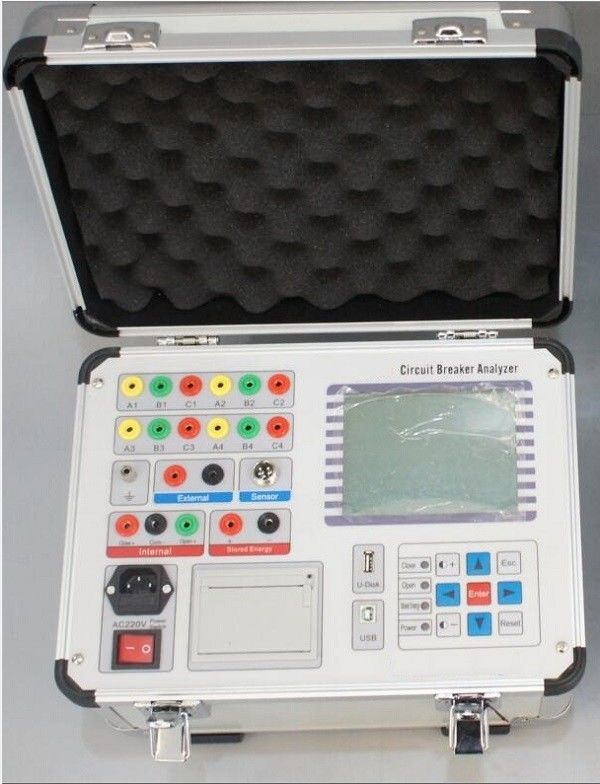

The Layout Of Panel
10A Power Test Equipment , Anti Jamming Circuit Breaker Analyzer 0

Number Panel Signs Function Description

A1 B1 C1 A2 B2 C2

A3 B3 C3 A4 B4 C4

12 road fracture time measurement channels, ↓ after 6-way channel virtual ground, not in contact with the earth.
Internal

Inside the sub-gate control DC power supply
Open and close control socket

Energy storage A set of DC power supply for switching energy.
Protect ground terminal In contact with the earth
External External trigger mode, directly and received points, together both ends of the coil, the coil on the electrical signal as a sync signal.
Speed sensor receptacle Speed sensor signal input
⑦⑧ Power switch Through this interface input supply 220V ± 10% 50Hz ± 10% 10A
Panel printer to print a test report and map
USB interface Test data can be stored via this interface
12 Arge-screen LCD l wide temperature, backlight LCD Chinese display all data and maps
11 Key  LCD contrast function key block increases, reduces
On, move the cursor or increase, reducing the value of the current cursor
Left, right menu or to move the cursor
[ENTER] to select the current menu or confirm the operation
[ESC] Go back or cancel the operation
[RESET] instrument reset
