0.05% 300V Energy Meter Calibration Equipment WIth PC Software

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

0.05% 300V Energy Meter Calibration Equipment WIth PC Software

0.05% 300V Energy Meter Calibration Equipment WIth PC Software
0.05% 300V Energy Meter Calibration Equipment WIth PC Software

Large Image :  0.05% 300V Energy Meter Calibration Equipment WIth PC Software

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCSB-UTI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Supply Ability: 10 set per month
Detailed Product Description
Standard Class: 0.02, 0.05 Output Voltage: 30-300V
Current Range: 1mA-120A Output Stability: Better Than 0.05%
Output Distortion: <0.5% Application: Lab, Worksite
High Light:

300V 0.05% Energy Meter Calibration Equipment

,

300V Energy Meter Calibration Equipment

,

300V worksite energy meter calibration

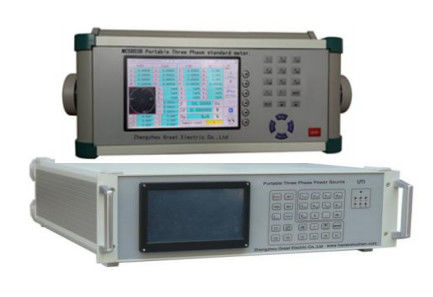

Portable Three Phase Meter Test System MCSB-UTI



Comprising Part

1) Standard Meter

2) Phantom Load Power Source

3) Test cables

4) Optical sensor

5) Communication cable

6) PC software

7) Power cord



Standard Meter



1) Small size and weight

2) Used in lab or worksite

3) Work as standard meter and calibrator in worksite or lab

4) LCD display

5) Accuracy class: 0.05 or 0.02 (optional)

6) Measuring range: 3*(1V-576V)/3*(1mA-120A)

7) Power and Energy test, Demand test, CT burden & Ratio Test, PT load test, Dial test

8) Optional for DC measurement for transducer test



Technical Index

Mains Supply Range 45-450V, 45-65Hz
Power consumption Max 20VA
Influence from external power supply on test result ≤0.005% when change 10%
Working Temperature -10 °C….+50°C
Temp. Co efficiency

≤0.0025%/ °C +10°C to +40°C

≤0.0050%/°C -10°C to +50°C

Frequency range 45…70Hz
Influence from external magnetize field ≤0.07 % /0.5mT
Time base 1-99s
Current Test

Direct mode



Range:1mA-120A

Display resolution: 6 valid digits

Measurement Error:

≤ ± 0.02% 10mA…120A

≤ 0.02% to 0.05% 1mA to 10mA

Clamp mode



Range:10A, 50A,100A,300A,500A,1000A, 3000A (optional)

Display resolution: 6 valid digits

Measurement error: ≤0.2%

Voltage Test
Range 1V….560V
Display resolution 6 valid digits
Measurement error

≤ ± 0.02% (30V…560V)



Burden Measurement

Voltage range 0V…5V
Display range 0.000mv…5.000v
Measurement error ≤ ± 1.0 %



Power Measurement (active, reactive, apparent)
Error: ≤0.02% (40V~576V,10mA~120A,PF≥0.5, 2-21 Times Harmonic Wave)

DC Measurement
Range 0 ..…± 20 mA 0V …± 10V
error E < ± 1.0% E < ± 1.0%
Display range 0.00 mA…20.00 mA 0.000V….10.000V
Energy Measurement Error

Active & apparent: 0.02% (direct mode) & 0.2% (clamp mode)

Reactive: 0.04% (direct mode) & 0.4% (clamp mode)

Power factor measurement
Error E ≤ ± 0.0002
Display range -1.00000….+ 1.00000
Resolution 0.010
Frequency Measurement
Error ±0.005%RD
Range 40-70HZ
Display range 40.0000HZ to 69.9990HZ
Harmonic content measurement
Times 2 – 51times
Error ±10%RD±0.1%





Standard Power Source

Technical Index

Model No. UTI-10 UTI-100
Description 1mA-12A, accuracy class 0.05 or 0.1 1mA-120A, accuracy class 0.05 or 0.1
Supply Voltage AC 85-282V, 47-63HZ AC 85-282V, 47-63HZ
Power Consumption 290VA 450VA
Influence of auxiliary voltage ≤0.005% at 10% variation ≤0.005% at 10% variation
Dimension 510*600*170mm 510*600*170mm
Weight 20KG 27KG
Frequency Range 45-69HZ 45-69HZ
Frequency Resolution 0.001HZ 0.001HZ
Frequency Error Less than 0.01HZ Less than 0.01HZ
Phase Angle Range 0-359.99° 0-359.99°
Phase Angle Resolution 0.001° 0.001°
Phase Angle Error 0.1° 0.05°
Communication Port RS232 RS232
Range (P-N) 30-300V 30-300V
Power 3*25VA 3*30VA
Display Resolution Six significant digits Six significant digits
Output accuracy 0.1% 0.05%
Output stability Better than 0.05%/2min Better than 0.05%/2min
Distortion Better than 0.5% Better than 0.5%
Range 1mA-12A 1mA-120A
Power 3*25VA 3*30VA
Display Resolution Six significant digits Six significant digits
Output accuracy 0.1% 0.05%
Output stability Better than 0.05%/2min Better than 0.05%/2min
Distortion Better than 0.5% Better than 0.5%
Fundamental Frequency range 45-69HZ 45-69HZ
Range 2-31st times 2-31st times
Maximum content in both voltage and current circuit 40% 40%
Active power 0.1% 0.05%
Reactive power 0.2% 0.1%
Apparent power 0.1% 0.05%
Power factor 0.1% 0.05%
Voltage 0.1% 0.05%
Current 0.1% 0.05%
Phase 0.1° 0.05°



Features



1) Can be used independently or together with standard meter

2) With measurement mode selection namely 3P3W, 3P4W and 1P2W

3) Power Source (PS): output 0-360V/phase & 1mA-12A or 120A/phase, or depend on client requirement

4) Linear amplifier

5) Can be independent set & output of each phase voltage & current

6) Can set phase angle independently

7) Automatic control by PC software

8) Manual control by touch screen/keypad





System Features

1) Can be used in lab or worksite

2) Big LCD display, touch screen operation

3) Can test various types of single and three phase eletromechanical and electronic meter

4) Can test meter basic error, dial test, demand test, creep test, start test, CT ratio, CT burden, PT burden,

    DC measurement (optional)...etc

5) Harmonic test 2-31 times  (system)

6) Can test and display

     a. True RMS value of voltage for each phase

     b. True RMS value of phase to phase voltage

     c. Harmonics distortion in each phase and total harmonic distortion

     d. Phase current

     e. Phase angle between voltages

     f.  Phase angle between voltage and current

     g. Active, reactive and apparent power of each phase

     h. Total power factor

     i.  Total active, reactive and apparent power

     j.  Instantaneous power factor for each phase

     k. Frequency

     l.  Vector diagram

     m. Hamornic analysis and spectrum

7)  With enough protection in circuit design

8)  User-friendly PC software
