480V Portable Meter Test Equipment , 0.02 Energy Meter Tester

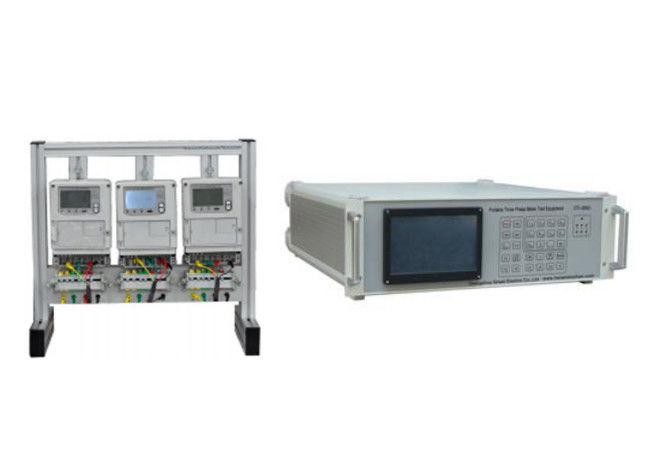

Portable Three Phase Meter Test Equipment UTI-SR01

1) In-built Standard Reference Meter (SRM): accuracy class 0.05 or 0.02 (optional)

2) Error test, start test, creep test, dial test..etc

3) Measurement of volts, current, p.f., power, frequency, phase angle, harmonic..Etc.

4) Linear amplifier

5) Can be independent set & output of each phase voltage & current

6) Can set phase angle independently

7) Meter Rack: three positions are optional

8) Automatic control by PC software

9) Manual control by touch screen/keypad

Technical Index

Configuration & Accessories List

Features

1) With in-built standard meter class 0.05 and with impulse outputs.

2) 7”LCD display

3) Can test various of single phase and three phase electromechanical /electronic energy meter

4) Can test and display voltage, current, phase, error, active energy, reactive energy, apparent energy,

    power, phase angle, power factor, frequency and etc

5) With in-built error calculator to calculate error of meter under test

6) With enough protection, like short-circuit voltage, current open-circuit protection,

    overload protection, over-voltage protection

7) 2-31 times harmonics test, adjustable harmonic amplitude (≤40%)

8) Dial test/Start test/Creep test

9) RS232 communication port with PC

10) Can save test data 500pcs up

11) With two impulse inputs, can get connect with external reference when need, work together

      with error processing system of unit and then comparing error, through connecting one power meter

12) With one option for choice between internal reference meter mode or external reference meter mode.

13) Have configuration where you can set the pulse value like pulse/wh or wh/pulse or pulse/kwh or kwh/pulse
