| Accuracy Class: | 0.02, 0.05 | Display: | 7"LCD, Touch Screen |
|---|---|---|---|
| Harmonic: | 2-63 Times | Voltage Range: | 30-300V （P-N), Up To 480V |
| Current Range: | 1mA-20A, Or More | Frequency: | 40-70HZ |
| High Light: | RS232 Portable Energy Meter Test Equipment,480V Portable Energy Meter Test Equipment,0.2% power test equipment |
||

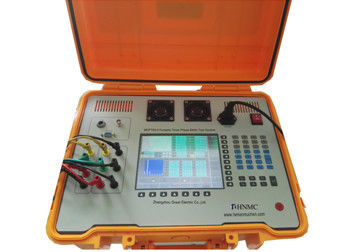

Portable Three Phase Meter Tester System MCPTS3.0
1. Big LCD display 7”, touch screen and keyboard
2. High accuracy 0.05 or 0.02 (optional)
3. High stability output
4. 2-63 times harmonic measurement
Technical Index
| Accuracy | 0.05% or 0.02% (optional) |
| Test range | |
| Voltage | 30-300V (P-N) (480V optional) |
| Current | 1mA-20A |
| Frequency | 40-70HZ, resolution 0.001HZ |
| Phase angle | 0-359.99°, resolution 0.001°, error 0.02° |
| Voltage source | |
| Range | 30-300V (P-N), 480V optional resolution: 6 digits valid value |
| Output Accuracy | 0.02% |
| Output capacity | 50VA/phase |
| Output stability | 0.02%/3mins |
| Output distortion | <0.2% |
| Current source | |
| Range | 1mA-20A, resolution: 6 digits valid value |
| Output Accuracy | 0.02% |
| Output capacity | 100VA/phase |
| Output stability | 0.02%/3mins |
| Output distortion | <0.2% |
| Other parameters | |
| Supply Voltage | AC 80-300V, 50/60HZ |
Features
1) High accuracy standard meter integrated with phantom load generation source
2) Test & display: basic error, current, voltage, power (P.Q.S), energy (P.Q.S), power factor,
phase angle, frequency, etc
3) Display phase voltage (P-N), line voltage (P-P), line current (P-P),
each phase/total phases power & energy (P,Q,S), harmonics, spectrogram, vector diagram, waveform,
phase sequence and etc
4) Start test/Creep Test/Dial Test/demand test
5) With short-circuit voltage, current open-circuit protection, overload protection, over-voltage protection
6) Can store data up to 1000 pcs
7) RS232 communication port with PC
8) PC software
