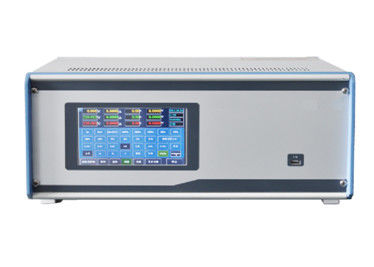

0.05% Power Factor Test Equipment Touch Screen Inbuilt Standard Meter

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

0.05% Power Factor Test Equipment Touch Screen Inbuilt Standard Meter

0.05% Power Factor Test Equipment Touch Screen Inbuilt Standard Meter
0.05% Power Factor Test Equipment Touch Screen Inbuilt Standard Meter

Large Image :  0.05% Power Factor Test Equipment Touch Screen Inbuilt Standard Meter

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: SYM31
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Display: Big LCD Operation Mode: Software, Touch Screen
Accuracy: 0.05% Application: Lab, Worksite, Meter Producer
Voltage Output: 0-300V Current Output: 1mA-120A
Current Circuit Output Power: 300VA/Phase Voltage Circuit Output Power: 100VA/Phase
High Light:

0.05% Power Factor Test Equipment

,

SRM Power Factor Test Equipment

,

300V voltage test equipment


 Portable Three Phase Meter Test Equipment SYM31


1) In-built Standard Reference Meter (SRM): accuracy class 0.05
2) Error test, start test, creep test, dial test, catch black mark..etc
3) Measurement of volts, current, p.f., power, frequency, phase angle, harmonic..etc..
4) Power Source (PS): output 0-300V/phase & 1mA-120A/phase, or depend on client requirement
5) Can be independent set & output of each phase voltage & current
6) Can set phase angle independently
7) Meter Rack: three positions are optional
8) Automatic control by PC software
9) Manual control by touch screen

Technical Index

Accuracy class (inbuilt standard meter)0.05
Voltage
Range3*(0-300V) (P-N)
Resolution0.01%
Output power100VA/phase
Output stability0.02%(180s)
Distortion≤0.5%
Current
Range3*(1mA-120A)
Resolution0.01%
Output power300VA/Phase
Output stability0.02%(180s)
Distortion≤0.5%
Phase angle
Range0.00o ~359.99o
Resolution0.01°
Frequency
Range45-65HZ
Resolution0.01HZ


Features

1) Accuracy & Error test of single phase meter and three phase meter
2) Measure parameters of voltage, current power, power factor, phase and frequency,
3) With real time display of vector diagraph; also including active and reactive test together.
4) Dial test, with pulse counting and timing base with KWH value
5) Creep test, range will be 70%, 80%, 100%, and 120% of Un
6) Can do start test, harmonic test (both voltage and current), Voltage dip test, stability test
7) Mode of test: automatic (by PC software); manual control by touch screen
8) Soft start/stop output voltage/current
9) Black mark search & capture function
10) Can save test records, inquiry and print of test result
11) Error records saved in database with MDB format or other
12) Can switch power factor between 1.0 and 0.5L, also phase angle can set & edit by end user.
13) Independently set voltage, current and phase angle of each phase
14) Can ensure constant output between connect and disconnect meter.
15) Harmonic time: 2-21times
16) Protection: current open circuit and voltage short circuit and malfunctions, auto protection & auto restore
17) With PC communication port RS232, operate by PC software, also provide communication protocol
