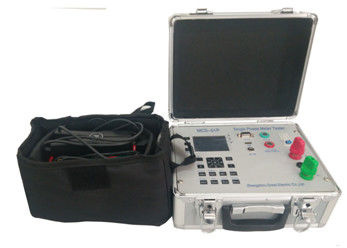

Single Phase Portable Meter Test Equipment With Phantom Load Box

Single Phase Portable Meter Test Equipment With Phantom Load Box
Single Phase Portable Meter Test Equipment With Phantom Load Box

Large Image :  Single Phase Portable Meter Test Equipment With Phantom Load Box

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCS-01P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Package
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Application: Lab, Worksite Accuracy: 0.2
Voltage Range: 0-265V Current Range: 5....3000A (Clamp Mode)
Phantom Load: Up To 40A Display: 3.2"LCD
High Light:

265V Class 0.2 Portable Meter Test Equipment

,

265V Portable Meter Test Equipment

,

Class 0.2 3000A 265V portable meter tester



Portable Single Phase Meter Tester with Phantom Load box MCS-01P



1) Portable unit

2) Integrated with current phantom load

3) Direct current mode can be available as option

4) Class 0.2

5) Error test, creep test, dial test…





Technical Index



General

Clamp Up to 50A (customized is available: 10A,100A, 200A,500A,…3000A or more)
Size 270mm*230mm*160mm(L*W*H)
Weight of main unit 4.4 kgs
Power consumption Less than 5VA
Warming up time 15 minutes
Working temp./humidity -25℃ ~ 55℃/<85%





Major Parameters

Item Parameter
Accuracy Clamp connection 0.2
Voltage (AC) Measurement range 0V-265VAC
Accuracy ±0.2%
Current (clamp-on CT) Measurement range 1%~120%In
Imin 1A
Ist 0.5A
Measurement range(In) 50A
Accuracy ±0.2%
Phase Range -180°~+180°
Frequency Range 45Hz-65Hz
Active power Measurement error ±0.2%
Energy Measurement error ±0.2%
Phantom load Current Output Range Upto 40A (with 3A,15A,40A range)
Energy impulse constant range 1-999999999









Features



1) 3.2” LCD display

2) Test single phase electro-mechanical/electronic meter at site

3) With current phantom load inside

4) Direct mode current can be available as option

5) Can test various electric parameter including voltage, current, frequency, phase, active power and energy

6) Can do error test, dial test and creep test

7) Can do CT ratio test

8) Can display waveform of voltage & Current

9) Can save at least 500PCS records and also can connect texternal extensions by flash driver

10) Communicate with PC by USB to upload test records, and download the information edited into the unit

11) Can communicate with meter by serial port to realize reading of meter

12) Can operate with ipad or App by bluetooth

13) With battery inside, work continuously for at least 8 hours

14) With enough electric protection inside including against wrong wiring



Accessories:

① Voltage cable (red, black)

② Current clamp 50A (customized is available)

③ Pulse wire, standard meter pulse wire, optical sensor pulse wire

④ Phantom load output wire

⑤ RS485 wire

⑥ USB wire

⑦ portable bag

⑧ operating manual

⑨ battery charger
