Accuracy: | 0.2, 0.5 | Current Range: | 10-300A (clamp Mode,optional) |
---|---|---|---|
Voltage Range: | 80-288V | GPS/GPRS: | Available For Option |
Application: | Filed Testing | Functions: | Meter Error, Dial Test....etc |
High Light: | 100A Portable Meter Test Equipment,65HZ lab Portable Meter Test Equipment,65HZ power testing equipment |

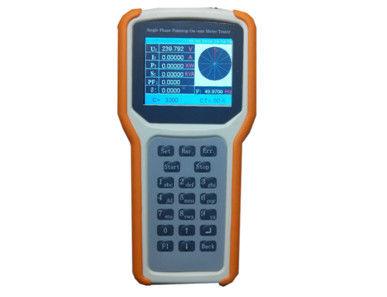

Portable Single Phase Reference Standard Meter MCSP01
1) LCD display
2) Accuracy class: 0.2 or 0.5 (clamp mode)
3) Measuring range: 80V-288V/clamp 10A, 50A, 60A, 100A, 300A optional
4) Power and Energy test, Demand test, Error test, Dial test
5) Support RS232 communication with PC to upload the test data
6) GPS/GPRS module (optional)
7) DLMS reading (optional)
Technical Index
Current Measurement | |
Range | clamp on CT: 10A, 50A, 60A, 100A, 300A, etc… optional |
Accuracy | 0.2 or 0.5 class |
Voltage measurement | |
Range | 80-312V |
Accuracy | 0.2 |
Frequency measurement | |
Range | 45-65HZ |
Error | ≤ 0.02HZ |
Phase angle measurement | |
Range | 0-360 deg. |
Error | ≤0.1 deg. |
Other parameters | |
Power supply | 240V±30% |
Power Consumption | less than 2VA in current circuit and less than 8VA in voltage circuit |
Features
1) Used in lab or site.
2) Test all kinds of electronics/electromechanical single phase meter at site
3) Test and display of basic error, voltage, current, power, power factor, energy, harmonics, etc
4) Dial test / demand test
5) PC software for uploading test data then analyze then generate report
6) Alpha numeric keyboard
7) Optical sensor with clamp or attaching disc to hold & count LED/LCD signal pulse
8) Snap switch to be used as an alternative of scanner/sensor head
9) Clamp-on CT with electronic compensation
10) Display error of MUT and store total energy including harmonics
11) LCD display
12) High Resolution Display
13) Two kinds of operation modes (auto & manual)
14) Capable of indicating the display under below conditions:
a. over current (more than 120%)
b. over voltage (more than 130%)
c. low voltage (less than 70%)
15) Real time internal clock with non-rechargeable battery with at least 10 years life
16) Store more than 200 test results
17) Interface to connect external printer
18) PC management software of uploaded the test records
19) Compliance with relevant IEC standard
