Worksite Portable Meter Test Equipment ,GPRS Portable Reference Standard Meter

Worksite Portable Meter Test Equipment ,GPRS Portable Reference Standard Meter
Worksite Portable Meter Test Equipment ,GPRS Portable Reference Standard Meter

Large Image :  Worksite Portable Meter Test Equipment ,GPRS Portable Reference Standard Meter

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCTP03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 sets/month
Detailed Product Description
Accuracy: 0.2 Application: Worksite Or Lab
Voltage Range: Up To 300V Current: Clamp-on CT (300A Or More)
DLMS: Available Test Function: Error Test, Dial Test, Demand Test....
Supply Voltage: 240V±30% (P-N) Power Factor: 0 To 1
High Light:

300V Portable Meter Test Equipment

,

Worksite Portable Meter Test Equipment

,

GPRS Portable Reference Standard Meter

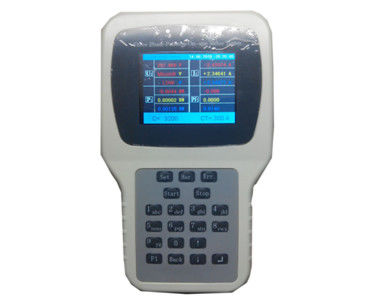

Portable Three Phase Reference Standard Meter MCTP03



1) Small size and weight

2) Used in lab or worksite

3) LCD display

4) Accuracy class: 0.2 or 0.5

5) Measuring range: upto 300V/phase; 5A or 10A /phase (direct mode); clamp 10A, 50A, 60A,

    100A, 300A ..optional

6) Power and Energy test, Demand test, Error test, Dial test

7) Support RS232 communication with PC to upload the test data

8) Optional for DLMS communication function

9) GPS/GPRS moudle (optional), data can be uploaded to server software



Measurement Ranges

Test Voltage Range up to 300V (P-N)
Test Voltage Resolution 0.01V or better
Test Voltage accuracy 0.2%
Test Current range (clamp mode)

500mA-300A (with clamp on CT)

(other any current range clamp-on CT are optional)

Test current range (direct mode) Optional. Can be up to 5A or 10A
Test current accuracy <0.2%
Test Current Resolution 0.001A or better
Phase Angle Measurement Range 0 to 360 deg.
Phase Angle Measurement Error 0.2 deg or better
Power/Energy measurement error (active, reactive, apparent)

0.2% (active, apparent)

0.4% (reactive)

Frequency range 50HZ±5%
Frequency Resolution 0.01HZ





Technical Index



1) Supply Voltage: 240V±30% (P-N)

2) Power Consumption: less than 2VA in current circuit and less than 8VA in voltage circuit

3) Rated Frequency: 50HZ±5%

4) Power factor: 0 to 1 (lag or lead)





Features

1) Used in lab or site.

2) Test all kinds of electronics/electromechanical single phase and three phase meter at site

3) Test and display basic error, voltage, current, power, power factor, energy, harmonics, etc

4) Dial test / demand test

5) Capable of displaying parameters including phase voltage, line voltage, line current, active power,

    reactive power, apparent power, power factor, phase sequence

6) Energy logged/recorded during test

7) CT/PT ratio cab be multiple with meter constant while doing dial test

8) Energy (active, reactive, apparent) measurement and display

9) High Resolution Display

10) Two kinds of operation mode (auto & manual)

11) PC software for uploading test data then analyze then generate report

12) Alpha numeric keyboard

13) Optical sensor with clamp or attaching disc to hold & count LED/LCD signal pulses

14) Snap switch to be used as an alternative of scanner/sensor head

15) Clamp-on CT with electronic compensation

16) Display error of MUT and store total energy including harmonics

17) LCD display

18) Real time internal clock with non-rechargeable battery with at least 10 years life

19) Store more than 200 test results

20) Interface to connect with PC

21) PC management software of uploaded the test records

22) Compliance with relevant IEC standard

23) DLMS communication function (optional)

24) Capable of indicating on display under below conditions:

      a. over current (more than 120%)

      b. over voltage (more than 130%)

      c. low voltage (less than 70%)

      d. missing potential

      e. missing current

      f. reverse current

      g. phase sequence

      h. wiring/correct association of voltage and current

      i. detection of circuit connection faults
