| Accuracy Class: | 0.1, 0.2 | Test Functions: | Error, Power, Energy, Dial Test.... |
|---|---|---|---|
| Voltage Range: | Up To 300V | Current Range: | Up To 100A |
| High Light: | 0.1 Class Portable Meter Test Equipment,300V Portable Meter Test Equipment,100A Single Phase Tester |
||

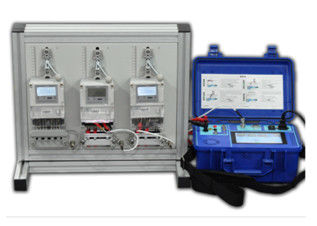

Single Phase Portable Meter Test System MCCS1.1
1) Small size and weight
2) Used in lab or worksite
3) LCD display
4) Accuracy class: 0.1 (direct mode); 0.2 (clamp mode)
5) Measuring range: upto 300V /100A (direct mode)
6) Power and Energy test, Demand test, Error test, Dial test, Start, Creep test
7) Support RS232 communication with PC to upload the test data
Technical Index
| Accuracy Class | |
| Direct current mode | 0.1 |
| Clamp-on CT mode | 0.2 |
| Clamp-on CT range | |
| Optional | 10…..300A…more (optional) |
| Standard meter measure range | |
| Current | 10mA-100A |
| Voltage | 1-300V |
| Resolution | Six digits valid value |
| Power source | |
| Output voltage range/resolution | 1-288V / better than 0.01% |
| Output current range/resolution | 10mA-120A / better than 0.01% |
| Output power | Maximum 100VA (current circuit) & 50VA (voltage circuit) |
| Output stability | ≤0.05% /120s (voltage,current,power) |
| Waveform distortion | ≤0.5% |
| Frequency range & resolution | 45-65HZ & 0.01HZ |
| Phase angle range & adjust resolution | 0-360 o / 0.01° |
| Other parameters | |
| Power supply |
AC 220V±10%,50/60HZ |
| Power consumption | Max 200VA |
| Size & Weight | 361*236*163mm & 7kg |
Features
1. Standard meter integrated with voltage and current source
2. 7” touch screen LCD; In-built ARM system
3. Output with high stability and low distortion
4. With enough protection: open circuit, short circuit, over load, and etc
5. Can do below test: start test, creep test, basic error test, standard deviation tester, dial test, etc..
6. Can do voltage dip and interrupt test
7. 2-21 times harmonic; can set amplitude and phase; and do harmonic analyze and get waveform
8. With self-test function namely can perform monitoring of output voltage, output current, output phase,
power factor, output frequency, output harmonic waveform and power output stability and etc
9. Four working mode:
-Portable single phase meter test equipment (optional: three position mount rack)
-Portable single phase reference standard meter
-Portable single phase meter tester with current source
-Standard meter which can give output impulse for calibration of the unit.
