0.2 Class Transformer Test Equipment , 10000 Transformer Turn Ratio Tester

Name: 0.2 Class Transformer Test Equipment , 10000 Transformer Turn Ratio Tester
Brand: HNMC
SKU: MCTTR301
Rating: 4.9 (111 reviews)

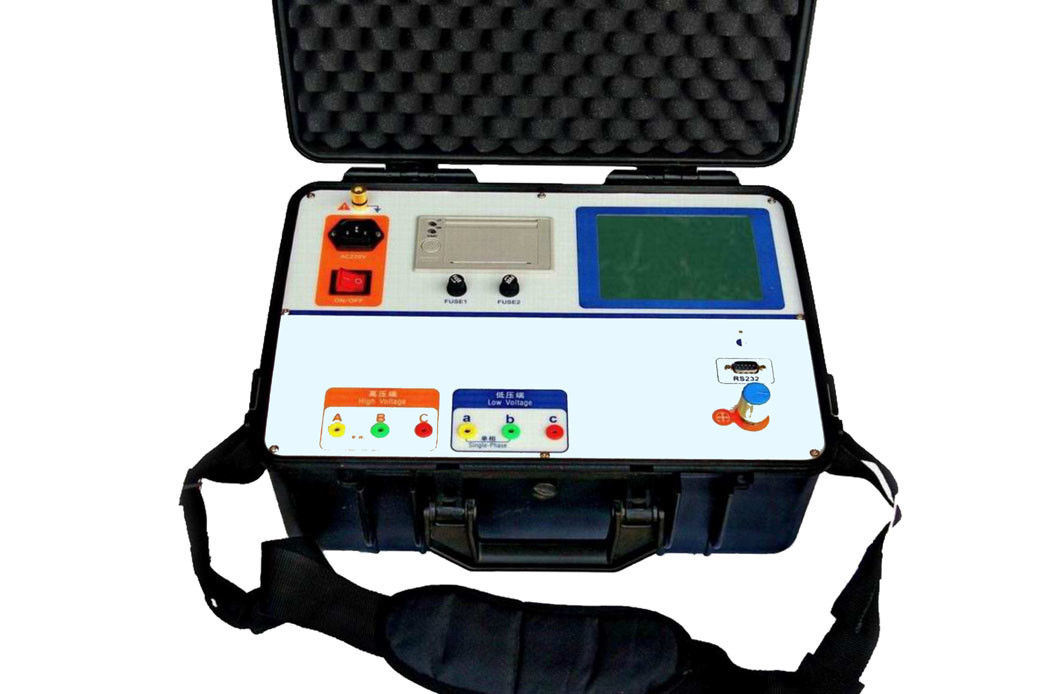

Large Image : 0.2 Class Transformer Test Equipment , 10000 Transformer Turn Ratio Tester

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	MCTTR301

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton package
Delivery Time:	20-25 Days
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Ratio Range:	1 To 10000	Group Measure:	1 To 12
Ratio Test Error:	0.5%, 0.2%	Display:	LCD
Power Supply:	220V+/-10%	Excitation Current Test:	Available
Data Upload:	By PC	Mini-printer:	Available
High Light:	0.2 Class Transformer Test Equipment , 220V Transformer Test Equipment , 10000 Transformer Turn Ratio Tester

Portable Transformer Turn Ratio Test Set MCTTR301

Main Features

1) LCD display

2) Measure single phase or three phase transformer turn ratio

3) Auto switch phase sequence and ranges

4) Auto calculate voltage regulation ratio

5) Ratio measurement & Ratio Error calculation by input standard ratio

6) Can test CT ratio and display excitation current

7) Group vector measurement; can auto measure single&three phase transformer group

8) Polarity measurement (knee point voltage should be more than 80V

9) Excitation current measurement

10) Auto indentify Reverse connection and give indication

11) Auto indentify the over current and give indication

12) Built-in protection circuit to prevent reverse connection between HV and LV

13) Adopt linear power supply

14) Auto cut test voltage after finishing test

15) Can save and browse test results

16) Upload test results to PC by RS232 interface

17) In-built micro printer for printing test result directly

Technical Index

Item	Technical Index
Ratio Measurement Range	1 to 10000
Group Measurement	1 to 12
Phase measurement error	less than 2 deg
Ratio measurement error	1 to 1000 ±0.2% RDG
Ratio measurement error	1000 to 10000 ±0.5% RDG
Excitation current measurement error	＜0.1mA
Power supply	AC 220V±10%, 50/60HZ
Size	400350200mm
Weight	7kgs

After sales service

Our sales and technical team can guarantee a fast and highly efficient after sales service for our products sold.
Once problem happens in clients, firstly we will consider online support of our clients to solve it quickly; secondly we will consider to provide spare parts for client to replace after fixing reason.

We will provide best service to support your marketing field.
