750V Transformer Test Equipment , Portable Transformer Loss Tester

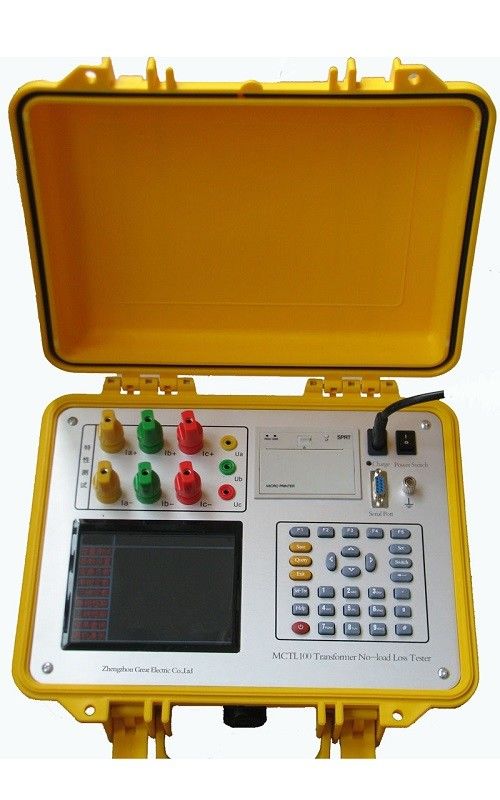

Large Image : 750V Transformer Test Equipment , Portable Transformer Loss Tester

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	MCTL-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	Carton package
Delivery Time:	20-25 Days
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Voltage Measure Range:	0-750V	Current Measure Range:	0-100A
Accuracy:	0.2%	Power Supply:	85-265V
Display:	LCD	Weight:	4KGS
Communication Port:	USB, RS232	Application:	Worksite, Lab
Highlight:	750V Transformer Test Equipment , RS232 Transformer Test Equipment , Portable Transformer Loss Tester

Portable Transformer Test Equipment-Transformer Loss Test Set MCTL-100

Main Features

1) Can measure: no- load current (excitation current); no-load loss (core loss); short circuit voltage;

short circuit loss (cooper loss); zero-sequence impedance

2) Can automatically adjust: distortion of wave form; temperature; voltage (no-load test under non-rated voltage);

current (short circuit test under non-rated current); and Input adjusting data according to the type of the transformer,

the instrument will calculate out results after adjust

3) Can connect external CT and PT to extend the measure range.

4) Wide voltage & current test range: maximum voltage test upto 750V without needing to switch range; and current

test can be upto 100A

5) Large LCD screen display, HMI, touching board and friendly operating

6) 232 USB connect external printer to print results. RS232 connector can upload data

Technical Index

Item		Technical Index
Voltage measure range		0~750V
Current measure range		0~100A,auto ranging
Accuracy	Voltage ,Current ,Frequency		±0.2%
	Power		±0.5%(CosΦ>0.1), ±1.0%(0.02<CosΦ<0.1)
Operating temperature		－10℃~ +40℃
Power supply		AC85V~265V
Insulation	Insulation resistance between voltage/current input terminal and housing:		≥100MΩ
	Power Frequency Withstand voltage between power supply input and housing		2KV (effective value), one minute
Dimension		35cm×26cm×13cm
Weight		4kg
