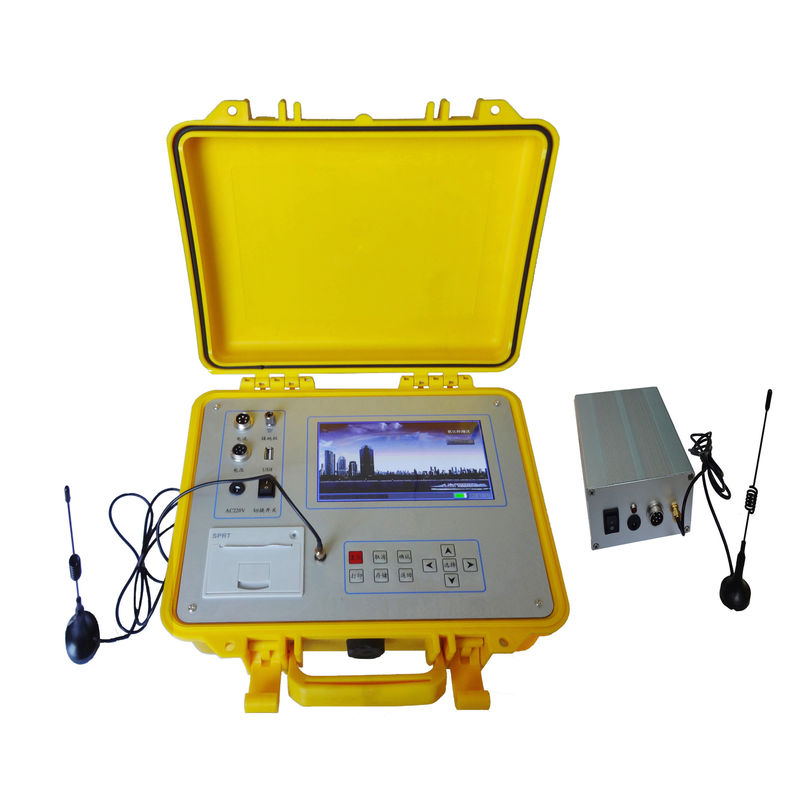

100V Power Test Equipment , 20mA Surge Arrester Tester

ZnO Surge Arrester On-line Tester MCZA 6820

Function & Character

• 800X480 lattice 65K true color LCD display, data is clear and legible.
• High accuracy sampling, processing circuit, Advance Fourier harmonic analysis technology, data is reliable.
• Directly collect signal of voltage and current.
• Test harmonic content- 3,5,7order harmonic wave in single or three phase or at the same time.
• Have resistive current basic wave peak output function
• With inbuilt memory, can save 50 groups test datum and test result.
• With USB Port, could save arbitrary data.
• Voltage and current test cable have prevent wrong connection function,
• Have wireless transmitting module,wireless acquisition and match host to measure wireless.
• Inbuilt high accuracy real-time o’clock, calibrate date and time in any time.
• With high speed thermal printer, can print test result at site
• With rechargeable battery as power supply, would work more than 6 hours continuously ,also have low battery signal and current range indicator on the display

Technical Index

  1. voltage and current parameter :

2. transmitting distance: apparent 500m

3. Power supply: AC220V±10%, 50HZ / Rechargeable Battery (can continuously work for 6 hour or more after 3-hour charging

    4. Dimension: 320*260*135mm

    5. work temperature: -10℃-40℃

    6. Relative humidity: ≤85% non condensing

    7. Storage temperature: -20℃-50℃

    8. Weight: approx 5.0KG

Packing list
