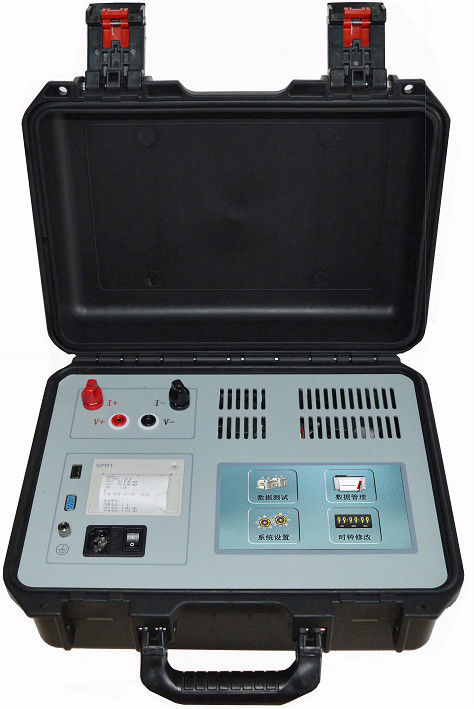

24V DC Winding Resistance Tester 7 Inch Touch LCD

24V DC Winding Resistance Tester 7 Inch Touch LCD
24V DC Winding Resistance Tester 7 Inch Touch LCD

Large Image :  24V DC Winding Resistance Tester 7 Inch Touch LCD

Product Details:
Place of Origin: China
Brand Name: Metrum
Model Number: ZSR Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 20-25 Days
Supply Ability: 100 pcs per month
Detailed Product Description
Display: LCD Operation: Fully Touch Screen
Measure Range: 0.5mΩ-100KΩ Resolution: 0.1μΩ
Current: 10A Data Store: 100 Group
High Light:

24V DC Winding Resistance Tester

,

LCD DC Winding Resistance Tester

,

90%RH dc winding resistance test

ZSR serial DC Resistance Tester



Functional features



1. Can operate by Android mobile phone or tablet

2. Maximum output voltage of instrument is 24V,  convenient to select a larger test

     current when the resistance value is high, so as to improve the test speed

3. Adopts new power supply technology, with many current ranges and wide measuring range.

    Automatically select the current according to the load. Suitable for DC resistance measurement

    of small and medium-sized transformers and voltage transformers.

4. With many protection functions, such as back EMF impact, wire breaking and power-off during the test,

    overheat of power supply and so on.

5. With function of any temperature conversion of copper and aluminum materials, touch to input any

    winding temperature and conversion temperature.

6. Intelligent power management technology, the instrument works in the minimum power state,

    effective energy saving, reduce heating.

7. Seven inch high brightness touch color LCD, clear display under strong light, full touch screen operation,

    free switching between Chinese and English.

8. With its own calendar clock and power-off storage, which can store 1000 groups of test

    data and can be consulted at any time.

9. With Bluetooth communication, RS232 communication and USB interface for computer

     communication and USB data storage.

10. Test results can be printed .



Technical Index



Item specification Remark
Current

AUTO,<20mA,40mA,

200mA,1A,5A,10A









measurement range and accuracy

0.5mΩ~0.8Ω (10A)

1mΩ-4Ω (5 A)

5mΩ-20Ω ( 1 A)

100mΩ-100Ω (200mA)

1Ω-500Ω (40mA)

±(0.2%+2字)
100Ω-100KΩ (<20mA) ±(0.5%+2字)
Resolution 0.1μΩ
Display 7 inch touch LCD Resistance display 4 digits effective value
Data save 1000 group
Work condition Ambient temperature:0℃~40℃ Relative humidity: <90%RH,non condensing
Power supply AC 220V±10V,50Hz±1 Hz fuse 2A
Consumption 200W
Dimension 360*290*170(mm)
Weight Host Machine :6 KG cable box:5 KG
