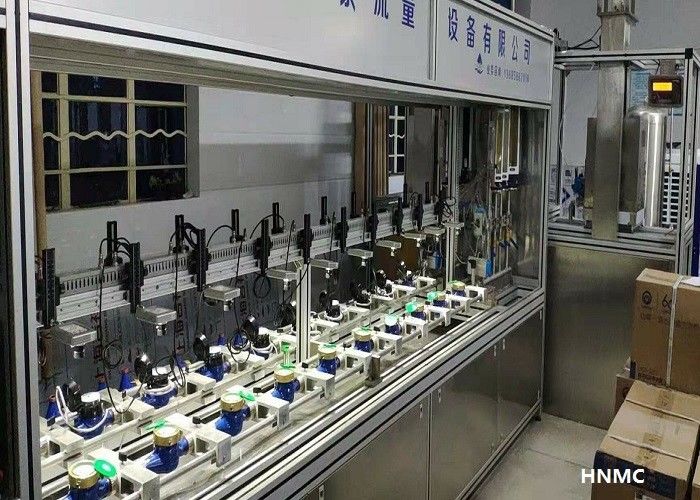

DN50 Automatic Water Meter Test Bench Controlled By PC Software

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

DN50 Automatic Water Meter Test Bench Controlled By PC Software

DN50 Automatic Water Meter Test Bench Controlled By PC Software
DN50 Automatic Water Meter Test Bench Controlled By PC Software

Large Image :  DN50 Automatic Water Meter Test Bench Controlled By PC Software

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCS15-50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden package10 meters serial connection fully-automatic water meter test bench ( camera type volumetric method)
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Water Meter Diameter Test Range: 15-50 Accuracy Class: 0.2
Size(mm): 4400*1860*2200 Read Water Meter: Photoelectric/Camera
Control System: C/PLC/MOXA Card And So On, PC Software Electromagnetic Flowmeter: DN4/DN15/DN50
Frequency Converter: 15kw Pump: 3m³
High Light:

0.2 Water Meter Test Bench

,

0.2 Automatic Water Meter Test Bench

,

0.2 15kw meter testing bench

DN15-25  fully-automatic water meter test bench
(Mass method/Dual clock method)
Applied standard:
1. Applied to IEC Standard
Main function
1. Camera technique is dynamic imaging method .
2. Could automatically collect volumetric value of measuring vessel and quantitative data of water meter tested.
3. Could test 10 pcs meters at each time.
4. Could verify continuously each flow point of various water meter automatically as per pre-set flow point.
5. Controller and display indicator could display actual work condition so that inspector monitor any time.
6. Could calculate error automatically and verify condition as per pre-set parameter. Could print, save and
   inquiry various verification data.
7. Could verify DN15-25mm measurement level C and below volumetric and velocity type water meter.
8. Have function of automatically withstand voltage test and test water meter withstand voltage .
   verify upto 1.6MPa(max.2.0MPa)then stop automatically and keep in required time then auto-recovery.

Technical Parameter

Automatic water meter test bench(Mass method/Dual clock method)
Water meter diameter test range 15-50
Accuracy class 0.2
Size(mm) 4400*1860*2200
Read Water meter Photoelectric/Camera
Control System PC/PLC/MOXA card and so on, PC software
Number of meter under test DN15×6,DN20×5,DN25×4,DN32×4,DN40×3,DN50×2
Electromagnetic Flowmeter DN4/DN15/DN50
Electronic Balance 600kg/60kg 1/6000
Class 0.20%
Flow Range 0.016m³/h~40m³/h
Frequency Converter 15kw
Pump Q=50m³/h H=50m N=15Kw
Storage Tank 3m³
Pressure Tank 0.5m³
Pressure-tight test 0-2MPa


configuration list

NO. name brand model unit quantity remark
1 Operation measuring vessel Great 10L-20L set 2 stainless steel
2 Operation measuring vessel Great 100L-500L set 2 stainless steel
3 Glass ratameter yinhan

LZB-15

4L/h -125L/h

set 2
4 Glass ratameter yinhan

LZB-25

20 L/h -315L/h

set 2
5 Glass ratameter yinhan

LZB-50

400 L/h -8000L/h

set 2
6 Glass ratameter yinhan

LZB-80

9m3/h -40m3/h

set 2
7 Meter clamp Great DN50 S=80mm set 2 stainless steel
8 Straight pipe sets Great

DN15×10 DN20×6

DN25×6 DN40×5

DN50×3

set 2 stainless steel
9 Working bench and accessories Great 15-50 double line working bench, holder,joint pipe,flange,elbow set 1 stainless steel
10 Liquid level controller Great 15-50 liquid level control set 2
11 Photoelectric transmitter Great 15-50liquid level control set 8
12 Pneumatic ball valve Liang gong DN15/DN25/DN50 set 2 stainless steel
13 air compressor Aotusi 0.1/min-0.6MPa set 1
14

Current stablilizer

Great 1000L set 1 stainless steel
15 Water tank Great 3000L set 1 stainless steel
16 Pump and pipe Great

KQL80/200-15/2 Q=43.5m3/h;H=38m;N=7.5kw
DN80

set 1
17

pressure cylinder

Great DN15-50 set 2
18 Others Great Fastener and sealer... set 2


DN50 Automatic Water Meter Test Bench Controlled By PC Software 0
