Adjusting Range 480V Three Phase Meter Test Bench Class 0.02

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

Adjusting Range 480V Three Phase Meter Test Bench Class 0.02

Adjusting Range 480V Three Phase Meter Test Bench Class 0.02
Adjusting Range 480V Three Phase Meter Test Bench Class 0.02 Adjusting Range 480V Three Phase Meter Test Bench Class 0.02

Large Image :  Adjusting Range 480V Three Phase Meter Test Bench Class 0.02

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCTB20C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable

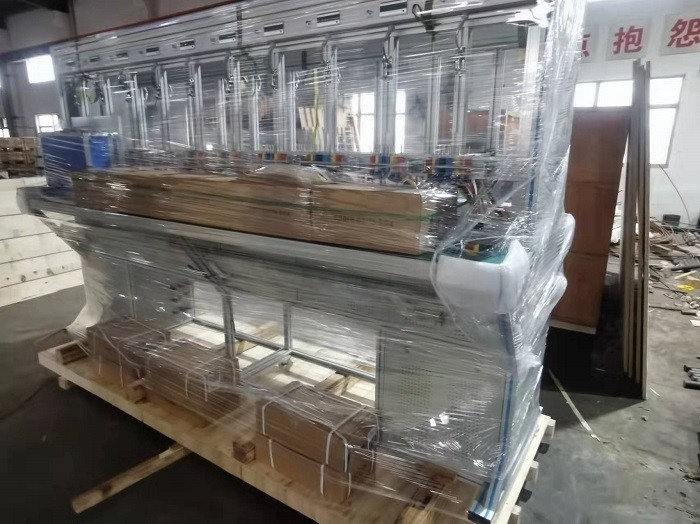

Packaging Details: Wooden Package
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets Per Month
Detailed Product Description
Accuracy Class: 0.05, 0.02 Standard Meter Accuracy: 0.05%, 0.02%, 0.01%
Harmonic Test: 2-21times Voltage Output: 1-480V
Current Output: 1mA-120A, 200A (optional) Output Stability: 0.05% Or 0.02%
High Light:

480V Three Phase Meter Test Bench

,

Class 0.02 Meter Test Bench

,

Three Phase Meter Test Bench 120A

0.05 Class Three Phase Electric Meter Test Bench



Major Application and Functions:
1) Touch screen operation for control source panel
2) With standard meter together show all necessary parameters in one screen
3) Majorly used in automatic meter calibration setup (connect and disconnect of meter)
4) Calibration setup include two types: fixed load point and load point changing
5) Calibrate the meter through Genus software by applying control protocol offered. 6) With good power stability and high accuracy output
7) Can switch power factor between 1.0 and 0.5L, also phase angle can set & edit by end user. 8) Can switch four different balance & unbalance conditions 9) Independent output for each phase including voltage & current
10) Can ensure constant power output between connect and disconnect of meter. 11) Protection: current open circuit and voltage short circuit, etc 12) With PC communication port RS232



Output & Build time
Power build time for fixed load point setup: within 5 seconds Power build time for load change setup: within 10 seconds Power stability: 0.02% (value in the range) after power build
Set value to output value: Range ±0.05%, for P, Q, S, V, A, PF
Technical Details
1) Accuracy class of in-built standard meter: 0.05
2) Voltage Range: 3*(0-380V); Adjustable Range: 0-120%; Resolution: 0.01%
Output power: more than 200VA per phase; Distortion: ≤0.5%
3) Current Range: 1mA-120A; Adjustable range: 0-120% ; Resolution: 0.01%
Output power: 1000VA/phase; Distortion: ≤0.5%
4) Phase Angle: 0.00
o ~359.99
o
; Resolution: 0.01° 5) Frequency Range: 45-65HZ; Resolution: 0.01HZ
6) Indication display accuracy: 0.1% (voltage & current); 0.1°(phase); 0.01Hz (Frequency)



0.05 Class Three Phase Electric Meter Test Bench

Technical Parameters

Accuracy class 0.05, 0.1 (optional)
Output Volts
Adjustment Range 3*(1-480V) (P-N)
Resolution 0.01%
Output Distortion <0.5%
Output Stability 0.05% or better
Output Power ≥ 30VA/position (total power depends on meter positions)
Current output
Adjusting Range 3* (1mA~ 120A), can be up to 200A (optional)
Adjustment Resolution 0.01%
Output distortion <0.5%
Output Stability 0.05% or better
Output power ≥ 100VA/ positions
Phase Measurement
Adjust range 0° ~ 360°
Resolution 0.01°
Frequency
Output Range 45-65HZ
Resolution 0.01HZ
Other parameters
Power supply 220V or 3×240V/415V±10%, 50/60Hz±10%
Ambient conditions 50C ~ 400C / up to 90% RH

0.05 Class Three Phase Electric Meter Test Bench



Configurations



1) Three Phases PS(Power source)

2) Three phase Standard meter, class 0.05 or 0.02 or 0.01

3)Meter Rack

      Number of positions: 6, 10, 12, 20, 40, 48....optional

      Each rack with one emergency STOP switch

      Each positions consist of 1 QCD 6 pins + 1 scanning head + 1 meter clamping + 1 RS/232/485

      communication port + 1 error display + 1  RESET button + 1 Set of voltage cable

      +1 ICT (need ICT or not depends on customer)

4) PC software

5) User Manuals

6) Optional

     0.05 Class Three Phase Electric Meter Test Bench

    - Isolated Current Transformer (ICT)

      Accuracy class: 0.01% (0.5C-1-0.5L)

      Current Ratio: 1:1 (1mA-120A)

      Current output: 3*(0.001-120)A (both primary and secondary)

       Secondary Output load: Maximum 0.5V (output current1mA-120A)

   -  MSVT

   - Personnel Computer

   - Printer
