Name: | Three Phase Meter Test Bench | Application Feild: | Lab Or Utilities Or Meter Manufacturer |
---|---|---|---|
Class: | 0.05 Or 0.1 | Standard Meter Accuracy: | 0.02% Or 0.05% |
Voltage Range: | 1V - 450V (P-N) | Current Range: | 1mA-120A |
Test Function: | Error Test, Start Test, Creep Test, Dial Test, Etc | Output Stability: | 0.05% |
High Light: | 1mA MTE Meter Test Equipment,utilities MTE Meter Test Equipment,0.05 electric meter testing equipment |

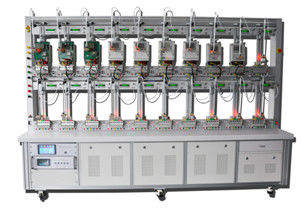

Three Phase Meter Test Bench SYD32-6A
1) PWM (Pulse width modulation) technology, 85% efficient
2) Mode of tests: Fully-automatic, semi-automatic, or manual by touch screen
6 positions 0.05 class Three Phase Meter Test Bench SYD32-6A
Technical Parameter
Accuracy class | 0.05, 0.1 (optional) |
Output Voltage | |
Range | 1-450V (P-N) |
Resolution | 0.01% |
THD | <0.5% |
Stability | <0.05%/180minutes |
Capacity | ≥ 200VA/phase |
Current output | |
Range | 1mA~ 120A |
Resolution | 0.01% |
Distortion | <0.5% |
Stability | <0.05% |
Capacity | ≥ 500VA/phase |
Phase angle | |
Adjustment range | 0° ~ 360° |
Resolution | 0.01° |
Frequency | |
Range | 45-65HZ |
Resolution | 0.01HZ |
Other parameters | |
Different value of each phase voltage and average value | <0.5% |
Different value of each phase current and average value | <1% |
Time base | 1 ~ 9999s |
Insulation between Voltage circuit vs. Current circuit, Between circuits vs. Earth | ≥ 5MΩ |
Power supply | 220V or 3×220V/380V±10%, 50/60Hz±10% |
Ambient conditions | 50C ~ 400C / up to 90% RH |
6 positions 0.05 class Three Phase Meter Test Bench SYD32-6A
Features
1) Can do creep test, start test, basic error test, standard deviation and etc….
2) Can test all types of single and three phase meter, meter constant can be different on each position
3) With error calculation display and reset buttons on each meter position
4) Black mark search & capture for rotation disk, time saving during shunting and starting test
5) General barcode input, and supports self-defined barcode
6) Intelligent solutions for calibration with updatable software
7) Calibrate parameters including voltage, current, phase/phase sequence, power, power factor, frequency,
etc. with real time display of vector graph
8) Register (Dial ) testing function, apply for testing various kinds of electronic meters
9) 2-21 times harmonic test
10) RS-485 and RS-232 communication interfaces isolated from each other
11) PC software can realize MIS net interface connection function, easily upgrade in the future if necessary
12) Optional to calibrate single phase power meters
13) Auto short connection for empty positions
