| AC Current: | 0-30A/phase | AC Voltage: | 0-125V/phase |
|---|---|---|---|
| DC Current: | 0-20A/phase | DC Voltage: | 0-150V/phase |
| Frequency: | 0-1000HZ | Phase: | 0-360 Degree |
| High Light: | 1000HZ 125V Protective Relay Test Set,1000HZ Protective Relay Test Set,1000HZ LCD Display protective relay tester |
||

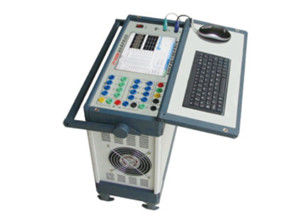

Protection Relay Test Equipment MCRT66Y
Features
1) Adopting DSP technology
2) High stability and reliable accuracy
3) In-built computer adopting high speed CPU
4) Large screen LCD display
5) Mouse and keyboard convenient for operation
6) It can test various of relay, protection & auto device
7) It can simulate different complicated instantant/transformable fault for whole group test
8) It can be also operated by PC through software
9) Save test data and show vector diagram, pilotting fault waveform
Technical Parameter
| Current Source | |
| AC current | 0-30A/phase, 6*(0-30A) |
| DC current | 0-20A/phase |
| Output power | 300VA/Phase |
| Accuracy | 0.2% |
| Response time | <μs |
| Resolution | AC 1mA; DC 2mA |
| Voltage source | |
| AC voltage | 0-125V/phase, 6*(0-125V) |
| DC voltage | 0-150V/phase |
| Auxiliary power supply | +110V, -110V, +220V |
| Output power | 50VA/phase |
| Accuracy | 0.2% |
| Response time | <120μs |
| Resolution | AC 2.5mV; DC 3.5mV |
| Frequency | |
| Range | 0-1000HZ |
| Resolution | 0.001HZ (power frequency); 0.1HZ (1kHZ) |
| Phase | |
| Range | 0-360 degree |
| Resolution/accuracy | 0.1 degree |
| Power supply: 220-250V AC 50/60HZ | |
