| Voltage Range: | 4*(0-120V) | Current Range: | 3*(0-40A) |
|---|---|---|---|
| Output Accuracy: | 0.5% | Display: | LCD |
| Voltage: | 4 Channels | Current: | 3 Channels |
| High Light: | Three Phase Protection Relay Test Equipment,In Built PC Protection Relay Test Equipment,LCD Protection Relay Test Equipment |
||

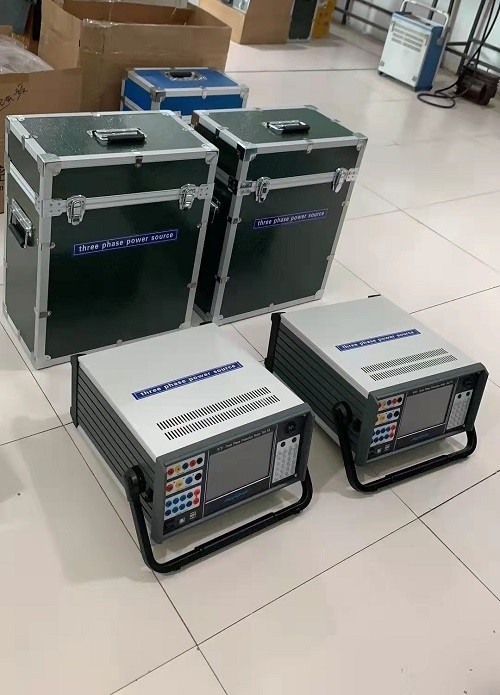

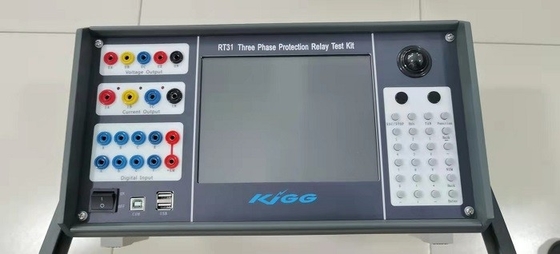

4 Phase voltage & 3 Phase current output Protection Relay Test Equipment With Fault Playback
Main Test of 4 Phase voltage & 3 Phase current output,
1.AC TEST
2.DC TEST
3.Harmonic Superposition Test
4.High-Low Frequency Test
5.Power Direction & Impedance Test
6.Synchronization Test
7.Full Group Test
8.Distance & Zero Sequence Protection
9.Characteristic of Impedance
10.Differential Protection
11.Differential Harmonic
12.Comprehensive Test of Line Protection of 6-35 KV Microcomputer
13.Fault Review
Technical Index of 4 Phase voltage & 3 Phase current output,
| AC current source | |
| Output accuracy | 0.5% |
| Output range | 3*(0-40A); 0-120A (three phases in parallel) |
| Phase current which can get long-time working 10A | |
| Maximum output power of phase current: 420VA | |
| Maximum output power of three phase current in parallel: 900VA | |
| Permissible working time (when three phase current in parallel to get maximum output): 10s | |
| Frequency (basic wave) range | 20-1000Hz |
| Harmonics times | 1-20 times |
| DC current source | |
| Output accuracy | 0.5% |
| Current output | 0-+/-10A per phase; 0-+/-30A (three phase in parallel) |
| Maximum load voltage output | 20V |
| Output accuracy | 0.5% |
| Phase voltage output | 4*(0-120V) |
| Line voltage output | 0-240V |
| Phase voltage/line voltage output power | 80VA/100VA |
| Frequency (basic wave) range | 20-1000H |
| Harmonics | 1-20 times |
| DC voltage source | |
| Output accuracy | 0.5% |
| Phase voltage output amplitude | 0-+/-160V |
| Line voltage output amplitude | 0-+/-320V |
| Phase voltage/line voltage output power | 70VA/140VA |
| Dimension | 400*300*180mm |
| Weight | approx 20KG |
| Power supply | AC 220V±10%,50／60Hz |
| Ambient temperature | -10℃ ～ +50℃ |
Switch signal and time measurement
| Switch signal input |
7circuits |
Idle contact: 1～20mA,24V Potential contact access: “0”:0～ +6V； “1”:+11 V～ +250V |
| Switch signal output | 2 pairs | DC:220V／0.2A；AC:220V／0.5A |
| Time measure |
Test range: 0.1ms ～ 9999s , accuracy 0.1mS Measurement range: 0.1ms ～ 9999s Measurement accuracy:0.1mS |
|
Digital Signal Processor Microcomputer
High-speed digital controlling processor is adopted as the output core of the tester. 32 bit double precision arithmetic is employed in the software, through which arbitrary high-accuracy waveforms of each phase can be produced. Since integrative structure is adopted,the structure of the tester is layed compactly.The distance of data transmission is short with tight structure, which overcome the problem of fewer points of waveform output due to long data communicational line and narrow frequency band when using the test controller controlled directly by PC.
