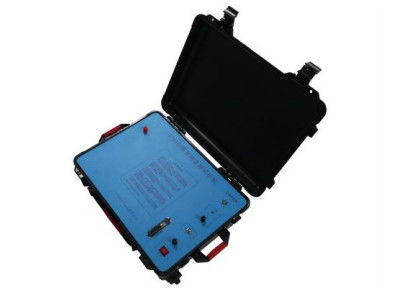

3KA Primary Current Injection Test Inbuilt Lithium Battery

3KA Primary Current Injection Test Inbuilt Lithium Battery
3KA Primary Current Injection Test Inbuilt Lithium Battery

Large Image :  3KA Primary Current Injection Test Inbuilt Lithium Battery

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCDF9800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 30-45 days
Supply Ability: 30 sets per month
Detailed Product Description
Output Voltage: 0-20KV Output Current: 0-3KA
Power Supply: Inbuilt Lithium Battery Weight: Around 20kgs
Real-time Sampling Rate: Adjustable Sampling Channels: 2Nos
High Light:

3KA Primary Current Injection Test

,

3KA Portable Primary Current Injection Test

,

20KV 3KA current test equipment



Portable Large Current Impact Characteristic Test System MCDF9800



Technical Index



Power supply inbuilt lithium battery
Output voltage 0-20KV
Max output current 0-3KA
Test current waveform impact waveform, typical is 1~10uS/10~50uS
Real-time sampling rate Adjustable, max 250MSa/S
Sampling channel 2 nos (voltage and current)
Operation way tablet by wifi connection
Carrying case with wheels and handle
Weight around 20kgs




Features

1) Maximum output 20KV/3KA, it can get better simulation of lightening impact characteristic

2) Adopting in-built lithium battery as power supply,  convenient for using

3) Adopting high speed sampling system, double channel can get real-time sampling speed up to 250MSa/s

4) It can ensure to restore each high frequency transient waveform

5) Total weight is around 20kgs, convenient for field testing

6) Can remotely operate the device by tablet and ensure safety of tester

7) System with its own special algorithm can generate different impact waveform in the worksite then convert

     into standard lightening impact waveform & impact impedance



After sales service

  • Our sales and technical team can guarantee a fast and highly efficient after sales service for our products sold.
  • Once problem happens in clients, firstly we will consider online support of our clients to solve it quickly; secondly we will consider to provide spare parts for client to replace after fixing reason.



We will provide best service to support your marketing field.
