Meter Positions: | 48, Or More For Option | Communication Interface: | RS485 |
---|---|---|---|
Accuracy Class: | 1.0 | Output Power: | 2000VA/phase |
High Light: | 48Nos Three Phase Energy Meter Test Bench,RS485 Three Phase Energy Meter Test Bench,2000VA energy meter testing |

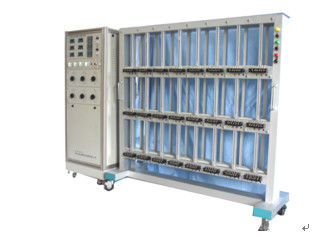

Three Phase Aging and Cyclometer Test Equipment
Positions: 48Nos, or more for options
Feature & Characteristic
1. Whole system mainly including source and 48 positions mounting rack
2. Aluminum extrusions frame, special material for this bench rack
3. Can test three phase four wire meter, three phase three wire active, three phase four wire reactive,
three phase three wire reactive meter
4. With various protections as below
5. Voltage circuit: over voltage and over current protection
6. Current circuit: secondary circuit over current protection
7. Regulator thermostat control and Fan cooling at room temperature
8. With counting and timing control
9. Five universal changeover switch: Phase switch, current range switch, selector switch, voltage
range switch, load matching switch
10. With digital indicator, voltage and phase can be read directly, also can read percentage of current
11. With RS485 communication interface
Mounting Rack Design for option
Technical Index
Indicator accuracy class | |
Voltage | 1.0 |
Current | 1.0 |
Output | |
Voltage | 3*220V/Y, 3*57.7V/Y, 3*380V/△,3*100V/△ |
Current measuring range | 1.5A, 5A, 10A, 20A, 40A |
Phase | -120°,-60°, 0°, 60°,120°,180° |
Power | <=2000VA/Phase |
Input voltage (power supply): 3*220V±10%, 3000VA/phase |
|
Dimension | |
Control source | 680*650*1720mm (L*W*H) |
Mounting rack | 1920*550*1800mm(L*W*H) |
