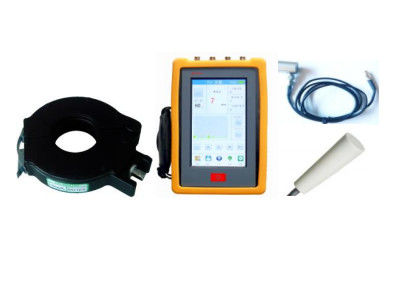

Multi function Partial Discharger Tester MCPD004
Use advanced technology and provide better user experience
Provide more functions optional for client
High stability and reliable performance
High accuracy measurement
Customization available according to user special requirement
Five channels options for more accessories choices
Suitable for lab, worksite online measurement
Widely used in power utilties, maintenance company
Technical Index
1. TEV measurement
| Item | Specification |
| Sensor | capacitance type |
| Range | 0-60bBmV |
| Frequency range | 3-100MHz |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Maximum impulse/cycles qty | 1400 |
2. Ultrasonic Measurement
| Item | Specification |
| Range | -7dBuV～68dBuV |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Sensor sensitivity: | -65dB (0dB=1V/ubar RMS SPL) |
| Sensor center frequency: | 40kHz |
| Frequency range | 20～100kHz |
| Sensor diameter: | 16mm |
| Heterodyne frequency: | 38.4kHz |
3. AE contact-type ultrasonic measurement
| Item | Specification |
| Range | 0dBuV～68dBuV(0.001mv～1.000mv) |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Sensor sensitivity | -65 dB (0 dB=1 volt/μbar RMS SPL) |
| Frequency range | 0～200 kHz |
4. HFCT high frequency DC measurement
| Item | Specification |
| Sensor type | HFCT |
| Range | 0pC～25000pC |
| Sensitivity | not more than 50pC |
| Test frequency | 200KHz～50MHz |
| Test band width | 100 MHz |
| Inner diameter | 45mm |
| Outer diameter | 110 mm |
| Output impedance | 50Ω |
| Output interface | BNC connector |
5. Size & Weight: 235mm*145mm*46mm / 1.5KGS
6. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC
